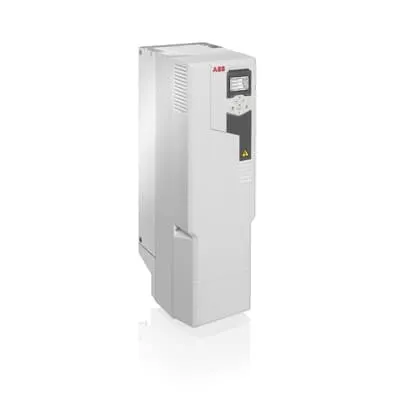

ABB ACS580-01-106A-4+N7530 Drive - IP21 Standard
Part Number: 3ABD00046731-D
Quick Summary
ABB ACS580-01-106A-4+N7530 drive is a general-purpose LV AC drive for wall-mounted control of compressors, conveyors and pumps. This solution reduces engineering time by offering plug-in readiness and built‑in features that minimize external hardware. It supports robust protection and lifecycle reliability with IP21 standard enclosure and optional IP55 or flange mounting to fit different installation needs. In addition to enabling efficient motor control for light industrial processes, it supports energy savings and simpler maintenance. This aligns with broader automation strategies, improving plant uptime and total cost of ownership.
Product Information
Extended Description
3ABD00046731-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature: Plug-in ready with built-in settings and assistants → Business Impact: Speeds up commissioning, reduces external hardware costs, and minimizes wiring complexity → Application: Ideal for wall-mounted control of compressors, pumps, and conveyors in food & beverage, plastics, and textiles. Feature: Intuitive setup menus and guided assistants → Business Impact: Cuts engineering time and training effort while ensuring correct parameterization → Application: Fast startup for new lines and easy adjustments during operation. Feature: Standard IP21 enclosure with IP55 and flange mounting options → Business Impact: Flexible installation across confined spaces or rugged environments, improving layout efficiency → Application: Conveyor stalls, compact plants, and machine cells. Feature: Rugged, robust design for light-industrial use → Business Impact: Higher reliability and lower maintenance costs over the equipment lifecycle → Application: Continuous operation in material handling, agriculture, and manufacturing settings. Feature: Comprehensive process control for torque and speed → Business Impact: Improved process stability and energy efficiency, with easier integration into plant-wide control systems → Application: Coordinated control of fans, mixers, and extruders in mixed-use facilities.
Get a Quick Quote for a ABB 3ABD00046731-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046731-D?
Enquire Now
FAQs
Begin with a secure wall mount, followed by mounting compatibility checks for IP21 enclosure. Connect power and motor leads per the ACS580 wiring diagram, then configure basic parameters using the built-in settings menu. Ensure appropriate fusing and protective devices, confirm earth grounding, and complete a functional test of speed and torque control before commissioning.
Best suited for light-industrial applications requiring variable torque or constant torque control, including compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans. The drive’s plug‑in readiness and straightforward setup streamline integration into existing automation architectures, delivering reliable performance in food and beverage, plastics, textiles, and material handling environments.
The ACS580-01-106A-4+N7530 ships with a standard IP21 wall-mounted enclosure. IP55 and flange mounting options are available to fit tighter spaces or more demanding environments, enabling flexible installation in a variety of plant layouts without compromising protection or accessibility.
The drive provides precise speed control, built-in protection features, and an intuitive settings menu that simplifies parameter optimization. By reducing mechanical and electrical losses through optimized motor control, it lowers energy consumption and improves process stability, supporting consistent output and reduced wear in pumps, fans, mixers, and conveyors.
ROI benefits arise from faster commissioning, reduced external hardware, and lower maintenance due to a single, integrated control device. The rugged design minimizes downtime in light-industrial lines, while built-in diagnostics simplify maintenance planning, allowing maintenance teams to allocate resources more efficiently and extend overall plant uptime.
