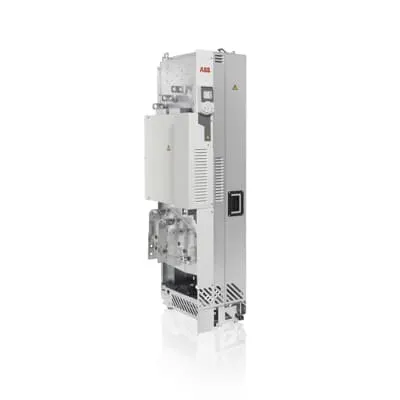

ABB 3ABD00047029-D ACS580-04 Drive Module - IP00/IP20
Part Number: 3ABD00047029-D
Quick Summary
ACS580-04 drive module from ABB provides precise LV AC speed control for compressors, conveyors, pumps, and fans. Plug-in ready and cabinet-friendly, it cuts commissioning time and reduces wiring complexity, helping to minimize downtime in demanding environments. CE certified with IP00 standard enclosure and IP20 option delivers reliable protection across light industrial settings. Built-in setup assistants, diagnostics, and a straightforward settings menu simplify maintenance and operator training. Engineered for food and beverage, plastics, textiles, and material handling, this module supports lean automation programs while delivering energy efficiency and scalable control across changing production demands.
Product Information
Extended Description
3ABD00047029-D ABB: The ACS580-04 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The ACS580-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Plug-in ready integration cuts wiring time and reduces cabling mistakes, accelerating cabinet installs and commissioning. The business impact is faster project delivery and lower field labor costs. This applies to compressors, conveyors, pumps, and fans in light industries like food and beverage and plastics. Built-in essential features and a straightforward settings menu enable fast setup and simpler maintenance, often without additional hardware. The business impact is improved uptime and reduced training time for operators and service staff. This is especially valuable for variable torque loads in mixed manufacturing environments such as packaging lines and textile processing. IP00 standard enclosure with IP20 option provides protection for a range of cabinet configurations while maintaining accessibility for wiring and service. The business impact is safer, compliant installations and easier retrofits into existing control cabinets. This makes it well-suited for material handling and agriculture where environmental exposure varies. Rugged housing and robust electronics extend reliability in harsh factory conditions, reducing unplanned downtime. Compatibility with ABB’s drive ecosystem enables scalable control and easier integration with existing automation layers. This supports a faster ROI through energy efficiency gains and consistent motor performance across changing production needs.
Get a Quick Quote for a ABB 3ABD00047029-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00047029-D?
Enquire Now
FAQs
Mounting the ACS580-04 requires allocating appropriate cabinet space for the IP00 standard enclosure, or selecting the IP20 option for added protection. Ensure proper DIN rail or panel mounting, comply with electrical clearances, and connect input power, motor leads, and control wiring per the ABB installation guide. The plug-in readiness feature minimizes field wiring when upgrading existing drives, reducing commissioning time significantly.
Key specs include a 355 kW power rating and a 650 A current rating, designed for LV AC motor control. The module ships in an IP00 enclosure with an optional IP20 protection upgrade, and is part of ABB’s ACS580 family, intended for controlled operation of compressors, conveyors, pumps, extruders, and fans in light-industrial settings.
Yes. The ACS580-04 is designed for varied torque applications common in food and beverage and plastics sectors. Its plug-in ready design, robust enclosure options, and built-in setup assistants help maintain hygienic and efficient production lines, while providing precise speed control and energy savings for conveyors and material-handling systems.
The drive module is CE certified for European compliance and features protective IP ratings with IP00 as standard and IP20 as an option. These ratings support safe operation inside cabinets and provide protection against dust and incidental contact in light industrial environments.
Users typically see reduced energy consumption through precise motor control and soft-start capabilities, lower maintenance costs due to built-in diagnostics, and shorter downtime from faster commissioning. The compact plug-in design also lowers installation labor, enabling a quicker path to payback in automation projects across conveyors, pumps, and mixers.
