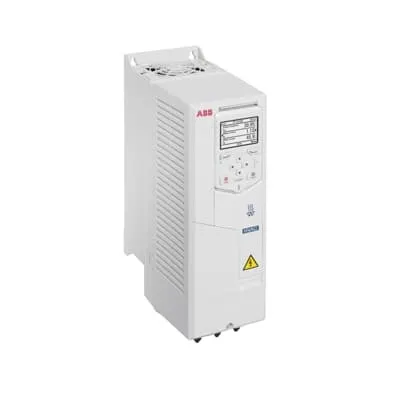

ABB ACH580-01-03A4-4+X1583 +N7551 LV AC Drive - IP21
Part Number: 3ABD00047421-D
Quick Summary
ABB ACH580-01-03A4-4+X1583 +N7551 LV AC wall-mounted drive for HVAC controls delivers precise fan, pump, and compressor management. Many projects struggle with lengthy commissioning and interface mismatches that slow startup and raise risk. This HVAC drive is CE certified and available in an IP21 enclosure, with optional IP55 and Bluetooth-enabled commissioning for remote setup. Built-in HVAC control functions reduce installation time and minimize external wiring, delivering faster startup and lower installation costs. For facilities, the combination of compact wall mounting and ABB reliability translates to easier installation, lower maintenance costs, and more consistent energy efficiency across critical HVAC equipment. This makes it a compelling choice for OEMs and retrofit projects seeking reliable, scalable HVAC drive solutions.
Product Information
Extended Description
3ABD00047421-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Built-in HVAC control functions reduce commissioning time and minimize external wiring, delivering faster startup and lower installation costs. The ACH580-01-03A4-4+X1583 integrates primary settings for fans, pumps, and compressors, helping technicians avoid misconfigurations. This pattern supports efficient operation in air handling units and chillers, where precise speed control translates to stable pressure, temperature, and humidity control. Energy-efficient speed modulation enables tighter load matching and reduced energy consumption across HVAC equipment. By maintaining optimal motor velocity with closed-loop control, the drive avoids wasteful surges and reduces wear on fans and pumps. This is particularly valuable in variable-air-volume systems and rooftop package units where small efficiency gains compound over time. Compatibility and installation advantages include a wall-mounted footprint that frees cabinet space and simplifies wiring. The IP21 enclosure comes standard, with IP55 and flange mounting options available for more demanding environments. HVAC installers appreciate the straightforward commissioning of the ACH580 family, which minimizes field adjustments and speeds up handover. Bluetooth capability for commissioning and monitoring enables remote setup, fault diagnosis, and performance trending without on-site visits. The included HVAC-specific startup menu guides technicians through parameter selection, reducing risk of incorrect configuration. Fieldbus and digital I/O options support integration with modern building management systems and automation networks. Reliability and lifecycle value come from ABB's design discipline: rugged hardware, long-term availability, and straightforward maintenance. CE compliance ensures respect for European safety standards, while built-in diagnostics alert technicians to motor or wiring issues before failures occur. For procurement, the total cost of ownership improves through reduced downtime and predictable maintenance cycles. In retrofit or new-build projects, the ACH580 family delivers scalable drive performance with minimal disruption.
Get a Quick Quote for a ABB 3ABD00047421-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00047421-D?
Enquire Now
FAQs
Install the ACH580 on a clean, vertical wall with ample clearance for cooling and control access. Connect main power, three-phase motor outputs, and HVAC I/O per the user manual. The IP21 enclosure provides basic wiring protection in typical mechanical rooms, while the optional IP55 kit covers tougher environments and helps protect the installation during maintenance and service.
Best suited for HVAC fans, pumps, and compressors across air handling units, chillers, and rooftop units. It delivers precise speed control, smooth acceleration, and reliable operation under varying loads. The drive’s interfaces also support integration with building management systems, enabling centralized monitoring and fault alerts for enhanced system reliability.
Yes. The ACH580 includes Bluetooth-enabled commissioning for remote setup, start-up, and diagnostics, reducing on-site visits. Use the HVAC-specific startup menu for parameter selection, monitor performance remotely, and push firmware updates as needed. If Bluetooth is unavailable, standard USB or network connections remain viable backups for on-site or remote configuration.
The device is CE certified for EU safety standards and comes with a standard IP21 enclosure, with IP55 options available for harsher environments. These protections, along with built-in diagnostics and motor protection features, help meet regulatory requirements while ensuring reliable operation in typical mechanical rooms and more demanding spaces.
ROI is driven by energy savings from tighter speed control, reduced commissioning time, and lower maintenance costs due to built-in diagnostics. Retrofit projects benefit from a compact wall-mount design that minimizes enclosure space and downtime during upgrades. Over the asset lifecycle, the drive offers predictable performance and lower total cost of ownership through proactive monitoring and fewer unexpected outages.
