ABB ACH580-01-09A5-4+X1583 HVAC Drive - IP21/IP55
Part Number: 3ABD00047425-D
Quick Summary

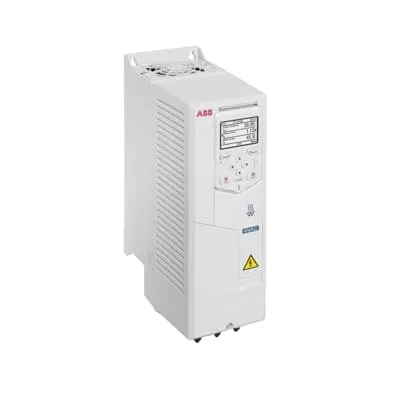

ABB ACH580-01-09A5-4+X1583 HVAC drive is a wall-mounted low-voltage drive for HVAC systems, delivering reliable control of fans, pumps, and compressors. It reduces startup time and energy waste by providing built-in HVAC-specific tuning and an intuitive interface. The unit ships with an IP21 enclosure by default, and IP55 and flange-mount options are available for tougher environments, ensuring robust protection in mechanical rooms and equipment spaces. By enabling Bluetooth-enabled commissioning and monitoring, this drive supports remote tuning and proactive maintenance, while compatibility with standard HVAC control architectures helps you optimize energy performance and simplify integration with building management systems.
Product Information
Extended Description
3ABD00047425-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: The ACH580-01-09A5-4+X1583 HVAC drive offers built-in HVAC control features that reduce commissioning time and improve start-up reliability, delivering measurable energy savings as fans, pumps, and compressors ramp smoothly. This translates to lower energy costs and extended equipment life when deployed in air handling units and chillers across commercial buildings. Feature → Business Impact → Application: The intuitive control panel and HVAC-specific primary settings menu simplify configuration for technicians, decreasing on-site labor and reducing risk of misconfiguration during startup, with immediate applicability to replacement projects and new installations. Feature → Business Impact → Application: Optional Bluetooth capability enables remote commissioning and monitoring, enabling faster diagnostics, reduced site visits, and continuous performance tracking for critical HVAC loads in data centers and manufacturing facilities. Feature → Business Impact → Application: IP21 enclosure by default, plus IP55 and flange mounting variants, provides installation flexibility in constrained spaces and protects electronics against dust and incidental moisture, making wall-mount installations in mechanical rooms viable for a wide range of buildings. Feature → Business Impact → Application: Rated for up to 4 kW and 9.4 A, the ACH580 supports modest HVAC drives with strong efficiency gains, helping service teams meet energy codes and deliver reliable control for fans, pumps, and compressors in energy-management projects. Feature → Business Impact → Application: The drive’s compatibility with standard IEC controls and its compact form factor enable easy retrofits in existing HVAC systems, lowering total installed cost while maintaining regulatory compliance and performance expectations.
Get a Quick Quote for a ABB 3ABD00047425-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00047425-D?
Enquire Now
FAQs
The ACH580 is designed for wall-mounted installation in HVAC environments. It ships with an IP21 enclosure by default and offers IP55 and flange-mount options for harsher spaces. Typical steps include mounting the unit on a clean, vertical surface, wiring power and motor connections per the IEC standard, configuring the HVAC primary settings in the intuitive control panel, and enabling optional Bluetooth for remote commissioning if required.
Key specs include a 4 kW nominal power rating and a 9.4 A input current, suitable for HVAC fans, pumps, and small compressors. It is a low-voltage drive intended for IEC-based systems, with built-in control features tailored to HVAC applications and compatibility with standard electrical protections and wiring practices.
Yes. The ACH580 HVAC drive is specifically designed to manage fans, pumps, and compressors in HVAC equipment, including air-handling units and chillers. Its HVAC-focused control panel, built-in settings, and optional Bluetooth capability support efficient operation, simplified commissioning, and reliable, energy-conscious performance in these applications.
The device features an IP21 enclosure by default with optional IP55 protection, enabling installation in standard mechanical spaces and more demanding environments. It is designed to meet common international standards for HVAC drives, and ABB’s products typically support European market requirements, with robust protection for long-term reliability in building systems.
ROI is influenced by reduced commissioning time due to intuitive HVAC-specific settings, energy savings from optimized fan and pump control, and the ability to monitor and tune the drive remotely via Bluetooth. For retrofit projects and new builds, these factors typically translate to lower total installed cost, faster project completion, and improved system reliability.
