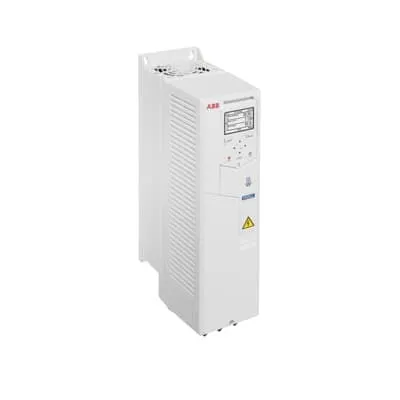

ABB ACH580-01-018A-4 HVAC Drive - IP21 Wall-Mounted
Part Number: 3ABD00047427-D
Quick Summary
The ACH580 HVAC drive is a wall-mounted LV AC drive that precisely controls fans, pumps, and compressors in commercial and industrial HVAC systems. Engineers often confront lengthy commissioning, startup inconsistencies, and challenges integrating variable-speed control with building management systems. This unit provides an IP21 enclosure with optional IP55 and flange mounting, plus Bluetooth capability for remote commissioning and monitoring, delivering reliable operation in diverse environments. By combining built-in HVAC control features with an intuitive primary settings menu, the ACH580 reduces installation time and energy use, delivering clear business value for facilities teams and system integrators while supporting scalable control for AHUs and chillers.
Product Information
Extended Description
3ABD00047427-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC control for fans, pumps and compressors → Business Impact: Enables smooth, energy-efficient operation across HVAC loads, reducing energy waste and improving system reliability → Application: Air handling units, chillers, and centralized HVAC loops. Feature: Intuitive HVAC-specific control panel with primary settings menu and help assistants → Business Impact: Accelerates startup and commissioning, lowers labor costs, minimizes misconfiguration → Application: New installations and retrofits in commercial buildings. Feature: Bluetooth capability for commissioning and monitoring → Business Impact: Enables remote setup, fault diagnosis, and performance tuning without on-site visits → Application: Field service, remote facilities management, and smart building integrations. Feature: IP21 enclosure with optional IP55 and flange mounting → Business Impact: Flexible installation, easier space planning, and robust protection in varying environments → Application: Wall-mounted control cabinets in mechanical rooms and equipment rooms. Feature: Built-in features reduce installation time and support mission-critical operation → Business Impact: Shorter project timelines, lower total cost of ownership, and higher equipment uptime → Application: Critical HVAC suites in data centers, hospitals, and industrial facilities. Feature: 7.5 kW, 17 A drive suitable for low-voltage HVAC applications → Business Impact: Provides precise torque and speed control with predictable performance → Application: Fans, pumps and compressors in HVAC systems.
Get a Quick Quote for a ABB 3ABD00047427-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00047427-D?
Enquire Now
FAQs
What mounting options are available and how should I route connections for reliable performance? The ACH580 is designed for wall-mounted installation with an IP21 enclosure by default, and optional IP55 and flange mounting. Plan cable entry points to minimize heat buildup, ensure adequate clearance for heat dissipation, and use shielded cables for motor and sensor lines to reduce EMI on AHU circuits.
Key specs include a 7.5 kW drive delivering up to 17 A current at low voltage, suitable for controlling fans, pumps, and compressors. The device supports precise speed control for HVAC applications, enabling energy savings and smoother operation in air handling units, chillers, and pumps. Bluetooth enables optional remote commissioning and monitoring.
Yes. The ACH580-01-018A-4 is built for HVAC applications, including AHUs and chillers, providing robust control of fans, pumps, and compressors. Its mission-critical capability and built-in HVAC features support reliable operation in normal and demanding conditions, while its installation flexibility simplifies retrofits and new-build deployments.
The drive comes with an IP21 enclosure as standard and supports IP55 and flange mounting options for enhanced protection and mounting flexibility. These ratings help ensure safe operation in mechanical rooms and equipment spaces, with compatibility for standard HVAC installation practices.
The ACH580 offers faster commissioning through HVAC-specific menus, reduces field service visits with remote Bluetooth commissioning, and improves energy efficiency across fans and pumps. These factors translate to lower installation labor costs, reduced startup risk, and ongoing energy savings, delivering a tangible return on investment for facilities managers.
