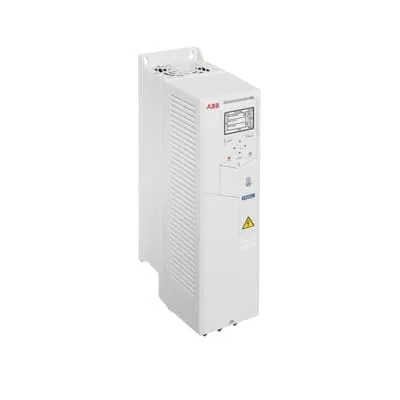

ABB 3ABD00047428-D HVAC Drive Wall-Mounted - IP21, 11 kW
Part Number: 3ABD00047428-D
Quick Summary
The ACH580 HVAC drive from ABB provides precise speed control for fans, pumps and compressors in HVAC systems. Installing and commissioning variable-frequency drives can be time-consuming and error-prone, especially in mission-critical environments. It ships in an IP21 enclosure with IP55 and flange-mount options, and it’s CE-compliant to meet European regulatory standards. This built-in capability supports smoother startup, better control, and longer equipment life, reducing downtime in critical facilities. With built-in HVAC-specific settings and optional Bluetooth for remote commissioning and monitoring, this drive delivers tangible business value for building automation and industrial HVAC projects.
Product Information
Extended Description
3ABD00047428-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Integrated HVAC control onboard the ACH580 drive enables direct handling of fans, pumps and compressors. Business Impact: Reduces external programming and commissioning time, shortening project timelines and accelerating handover to operations. Application: Ideal for air-handling units, rooftop systems and chillers where precise fan and pump control drives energy efficiency and reliability. The system’s energy management capabilities translate into measurable cost savings over annual operating cycles. Long-tail keywords addressed include HVAC drive for ventilation systems and HVAC motor control solutions. Feature: HVAC-specific primary settings menu with help assistants. Business Impact: Simplifies startup and reduces commissioning risk, even for less-experienced technicians, lowering on-site labor costs. Application: Fast, accurate parameterization in new installations or retrofits of commercial buildings and industrial plants. Feature: Optional Bluetooth capability for remote commissioning and monitoring. Business Impact: Enables remote diagnostics, reduces site visits, and accelerates maintenance planning. Application: Suitable for distributed HVAC networks and service contracts where off-site oversight improves uptime.Feature: IP21 wall-mounted enclosure with IP55 and flange mounting options. Business Impact: Flexible installation options improve fit in constrained spaces and harsh environments, minimizing enclosure-related rework. Application: Wall-mounted installations in mechanical rooms or equipment closets, with alternative mounting for challenging layouts. Feature: 11 kW, 25 A rating for standard HVAC motors. Business Impact: Ensures compatibility with common HVAC motors and compressors, supporting predictable performance and regulatory compliance. Application: Medium-capacity fans and pumps in mid-size buildings and light industrial applications. Feature: Built-in control features and energy-efficient operation. Business Impact: Reduces energy waste and extends equipment life, delivering a positive return on investment through lower lifecycle costs. Application: Continuous operation in critical facilities where reliability and efficiency are paramount.
Get a Quick Quote for a ABB 3ABD00047428-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00047428-D?
Enquire Now
FAQs
The ACH580 is designed for easy wall mounting with an IP21 enclosure standard. For installations requiring higher protection, IP55 and flange-mount options are available. Follow ABB’s commissioning guide to connect L, N, and motor leads, configure motor nameplate parameters, and enable HVAC-specific control profiles to achieve a reliable startup with minimal commissioning time.
The ACH580 HVAC drive is built to control fans, pumps and compressors, making it ideal for air-handling units, ventilation systems, chillers and other HVAC equipment. Its HVAC-specific settings menu helps tailor control strategies for air movement, pressure, and cooling load, delivering energy-efficient operation across building systems.
Yes. An optional Bluetooth capability enables remote commissioning and monitoring, which reduces on-site visits and accelerates commissioning. This capability is particularly valuable for distributed HVAC networks, service contracts, and facilities with hard-to-reach equipment.
The ACH580 drive ships in an IP21 enclosure as standard, with IP55 and flange-mount options available for enhanced protection. It also complies with CE marking for European markets, supporting regulatory requirements in commercial and industrial HVAC projects.
Expect reduced installation and commissioning time due to built-in HVAC controls and a guided settings menu, improved energy efficiency from precise motor control, and lower total cost of ownership through easier maintenance and remote monitoring options. The 11 kW, 25 A rating aligns with common HVAC motor loads for mid-size systems.
