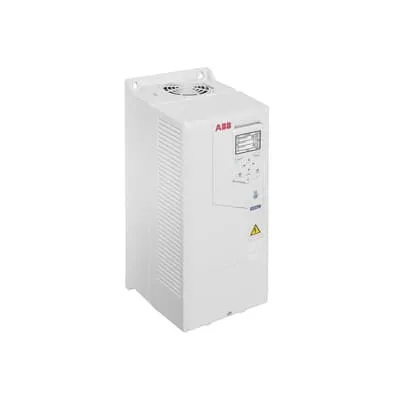

ABB 3ABD00047429-D ACH580 HVAC Drive - IP21
Part Number: 3ABD00047429-D
Quick Summary
ACH580 HVAC drive enables precise fan, pump and compressor control for reliable building HVAC applications. Engineers often face long commissioning times and fragmented integration with building management systems, delaying project schedules. This solution offers an IP21 enclosure by default, with IP55 and flange-mount options, plus HVAC-specific startup helpers to speed deployment. Built-in control features reduce wiring and configuration steps, delivering faster startups and consistent operation. For procurement teams and engineers, this translates to lower total cost of ownership and easier maintenance, while meeting the needs of modern commercial and industrial HVAC environments.
Product Information
Extended Description
3ABD00047429-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC control for fans, pumps, and compressors. Business Impact: Delivers smoother operation, reduces energy consumption, and shortens startup times by eliminating external controllers and extra wiring. Application: Particularly effective in air handling units (AHUs), chillers, and cooling loops in commercial facilities where dependable HVAC performance matters. Feature: HVAC-specific primary settings menu and guidance. Business Impact: Accelerates commissioning, minimizes configuration errors, and ensures consistent startup across multiple sites. Application: Field engineers benefit during retrofit projects and new installations, where quick onboarding of drive parameters saves days of work and reduces commissioning risk. Feature: Optional Bluetooth capability for commissioning and remote monitoring. Business Impact: Enables off-site parameter adjustments, fault diagnostics, and trend monitoring, cutting service visits and accelerating issue resolution. Application: Large campuses or multi-building complexes can manage multiple ACH580 drives from a single control room. Feature: IP21 standard enclosure with wall-mount design; IP55 and flange-mount options available. Business Impact: Provides installation flexibility, improved protection in diverse environments, and easier integration with existing electrical infrastructure. Application: Suitable for indoor mechanical rooms and spaces with limited clearance, as well as mission-critical environments requiring robust mounting options. Feature: Low-voltage drive with integrated protections. Business Impact: Delivers reliable operation with built-in safeguards, supports energy-saving strategies, and reduces total cost of ownership. Application: HVAC systems across offices, campuses, and light-industrial facilities seeking predictable performance and lower operating costs.
Get a Quick Quote for a ABB 3ABD00047429-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00047429-D?
Enquire Now
FAQs
ACH580 is designed for wall-mount installation using a low-voltage AC drive format with an IP21 enclosure by default, and IP55/enhanced mounting options available. To ensure compatibility, verify clearance, conduit knockouts, and mounting bracket fit with your mechanical room layout, while respecting enclosure protection levels and service clearances.
Key specs include 15 kW nominal power and 32 A current rating, a compact low-voltage AC drive footprint, and an IP21 enclosure. It is designed to drive fans, pumps, and compressors in HVAC applications, with HVAC-focused startup guidance and options for remote monitoring via Bluetooth.
Yes. The ACH580 HVAC Drive is built to manage fans, pumps, and compressors typical of AHUs and chillers, offering built-in HVAC control capabilities, energy-efficient operation, and a streamlined startup experience to suit medium- to large-scale HVAC installations.
The standard configuration uses a wall-mounted IP21 enclosure. Optional IP55 protection and flange mounting units are available for more demanding environments or space constraints, enabling flexible integration in indoor mechanical rooms or restricted installation spaces.
Automation features shorten commissioning time, reduce wiring complexity, and enable centralized monitoring, which lowers labor costs and site visits. Energy-saving operation and fewer startup errors can translate into lower operating expenses and improved system reliability over the life of the HVAC installation.
