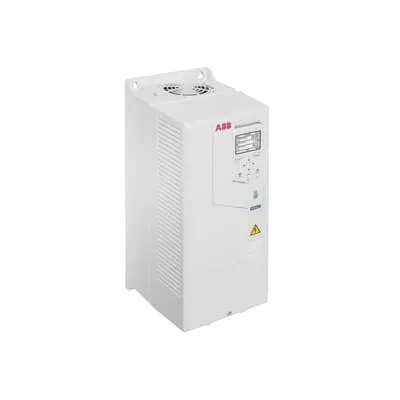

ABB ACH580-01-039A-4 HVAC Drive - IP21 with IP55
Part Number: 3ABD00047430-D
Quick Summary
ABB ACH580-01-039A-4 HVAC drive is a wall-mounted LV AC controller for fans, pumps, and compressors in commercial HVAC. A common challenge is lengthy commissioning and startup, which this drive helps mitigate with HVAC-specific menus and intuitive guidance. Key protections include an IP21 enclosure, with optional IP55 and flange-mount options, and CE-compliant design for regulated installations. On the business side, you gain energy-efficient operation, easier installation, and scalable control across multiple HVAC components to reduce total cost of ownership.
Product Information
Extended Description
3ABD00047430-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC control capabilities. Business Impact: Enables precise fan, pump, and compressor regulation that reduces energy consumption and improves system stability. Application: Used in air handling units, chiller plants, and large VAV systems, delivering measurable efficiency gains. Feature: HVAC-specific primary settings menu and help assistants. Business Impact: Accelerates startup and reduces commissioning time, lowering labor costs and project risk. Application: Ideal for commissioning teams seeking fast, repeatable parameterization across equipment types. Feature: Optional Bluetooth capability for remote commissioning and monitoring. Business Impact: Supports off-site diagnostics and maintenance planning, cutting on-site visits and downtime. Application: Useful for multi-building portfolios or remote facilities. Feature: IP21 enclosure with IP55 and flange mounting options. Business Impact: Expands installation flexibility, enabling surface, wall, or panel mounting in varied environments. Application: Enables fit-for-purpose installations in restricted spaces or harsh environments. Feature: Nominal power of 18.5 kW and 38 A rating. Business Impact: Matches mid-range HVAC loads with reliable torque control and smooth startups, enhancing equipment lifespan. Application: Suitable for medium-sized fans, pumps, and compressors across commercial buildings. Feature: Compact wall-mounted form factor with HVAC-ready firmware. Business Impact: Simplifies retrofits and new builds, reducing wiring complexity and enabling rapid deployment. Application: Works with centralized or decentralized HVAC architectures for scalable solutions.
Get a Quick Quote for a ABB 3ABD00047430-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00047430-D?
Enquire Now
FAQs
The ACH580-01-039A-4 is a wall-mounted, low-voltage AC drive designed to manage fans, pumps, compressors, and related HVAC equipment. It excels in commercial buildings, data centers, and industrial HVAC plants where precise speed control and reliable operation are required for air handling units, chillers, and multi-zone systems.
Installation is streamlined by built-in HVAC features, an HVAC-specific primary settings menu, and help assistants that guide startup. The drive also supports remote commissioning via Bluetooth, reducing on-site visits and enabling quick tuning for multiple devices in centralized or decentralized HVAC architectures.
The unit provides 18.5 kW nominal power and 38 A current. It ships in an IP21 wall-mounted enclosure, with IP55 and flange mounting options available for harsher environments or tighter spaces, delivering flexible installation across various plant layouts.
Key protections include IP ratings IP21 by default, with optional IP55 and flange mounting options for enhanced ruggedness. The design also emphasizes safety and reliability aligned with CE-type practices commonly expected in regulated HVAC projects.
Expect lower operating costs through improved energy efficiency and smoother motor control. Built-in diagnostics, easy commissioning, and remote monitoring capabilities reduce maintenance visits and downtime while enabling proactive management of HVAC assets across facilities.
