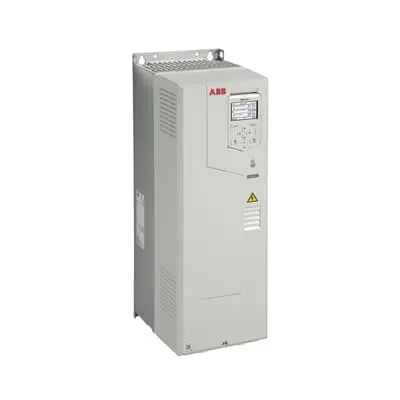

ABB ACH580-01-062A-4+X1583 HVAC drive - IP21 Enclosure
Part Number: 3ABD00047432-D
Quick Summary
The ABB ACH580 HVAC drive controls fans, pumps and compressors in HVAC systems for reliable, energy-efficient operation. Facing tight commissioning schedules, fragmented control architectures, and high retrofit risk, engineers need a solution that integrates quickly with existing building automation. This unit is CE certified and available with an IP21 wall-mounted enclosure, with IP55 flange mounting options to suit tougher environments. Its built-in HVAC-focused primary settings menu, intuitive help assistants, and the option for Bluetooth-enabled remote commissioning shorten startup times, enhance commissioning accuracy, and simplify ongoing operation, delivering measurable business value through reduced installation time and improved system uptime.
Product Information
Extended Description
3ABD00047432-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Built-in HVAC control features optimize motor output and fan duty cycles for precise speed control, delivering energy savings and smoother operation. The business impact is lower energy bills, reduced wear on motors, and a simplified procurement path by limiting external controllers. This is particularly beneficial in air-handling units, chillers, and variable-air-volume systems where control precision translates directly to occupant comfort and system efficiency. The HVAC-specific primary settings menu and help assistants shorten the startup sequence and reduce commissioning errors, enabling technicians to configure devices quickly and accurately on the shop floor and in the field. Applications include rooftop units, AHUs, and modular HVAC plants where dependable control is essential. Bluetooth-enabled remote commissioning supports off-site diagnostics and monitoring, reducing on-site service visits and accelerating maintenance cycles, which translates to lower total cost of ownership and faster project timelines. For facilities upgrading legacy drives, the ACH580 offers a migration path with familiar ABB interfaces and documented integration procedures, minimizing risk. IP21 wall mounting, with IP55 flange options, provides installation flexibility in mechanical rooms and above-ceiling installations, reducing cabling complexity and enabling compact rack-space utilization. The enclosure strategy, combined with built-in safety features and CE compliance, helps with regulatory alignment and on-site safety. Finally, the drive’s compatibility with HVAC equipment across fans, pumps and compressors helps stakeholders standardize the drive portfolio, lowering training requirements and support costs while improving spare-part availability.
Get a Quick Quote for a ABB 3ABD00047432-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00047432-D?
Enquire Now
FAQs
The ACH580 is designed for low-voltage HVAC applications and ships with a standard IP21 wall-mounted enclosure. It supports optional IP55 flange mounting and can be installed in typical mechanical rooms or above-ceiling spaces. It requires a suitable LV power source, proper thermal management, and correct wiring to fans, pumps, and compressors. For optimal performance, follow ABB’s startup guides and ensure compatibility with existing building automation interfaces.
The ACH580 implements advanced motor control and HVAC-specific drive curves to optimize fan and pump speeds, reducing unnecessary throttling and variable-speed operation. The result is lower energy consumption, reduced peak demand, and less mechanical wear. Its integrated features minimize external control hardware, enabling a leaner, more efficient HVAC system with predictable performance.
Yes, IP55 flange mounting options are available to protect the drive in harsher environments or where higher ingress protection is required. IP21 is standard for wall-mounted installation. Choose IP55 when the drive is exposed to more dust, moisture, or harsher ambient conditions, or when a flange-mounted configuration better fits your enclosure layout and service accessibility needs.
The ACH580 HVAC drive is CE certified, ensuring interoperability and safety within European regulatory frameworks. It offers IP21 enclosure by default, with optional IP55 and flange mounting for more demanding environments. These certifications support safe integration with building management systems and compliance with industry standards for HVAC equipment.
ROI improves through energy savings from optimized motor control, reduced commissioning labor due to HVAC-specific settings, and fewer on-site service visits thanks to remote commissioning capabilities. The Bluetooth option enables off-site monitoring, while built-in diagnostics simplify preventive maintenance. Overall, owners typically see lower total cost of ownership from improved reliability and faster project timelines.
