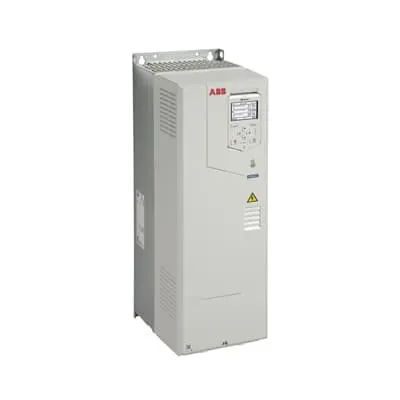

ABB ACH580-01-073A-4+X1583 +N7551 HVAC Drive - IP21 Enclosure
Part Number: 3ABD00047433-D
Quick Summary
The ACH580 HVAC drive is a wall-mounted LV AC drive designed to control fans, pumps and compressors in HVAC systems. With built-in HVAC specific menus and help assistants, it reduces commissioning time and minimizes configuration errors, addressing the engineering challenge of rapid, reliable startup. CE marking is included, and ABB offers IP21 standard enclosures with optional IP55 flange-mounts to match installation environments. This solution pairs well with energy‑efficient motor control and simple remote monitoring, lowering operating costs while improving system performance. The compact footprint fits tight service areas, and the Bluetooth option enables distant diagnostics, delivering measurable value for both new installs and retrofits.
Product Information
Extended Description
3ABD00047433-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Built-in HVAC control features for fans, pumps and compressors streamline operation and improve energy efficiency, reducing utility costs and wear on equipment. This translates to smoother operations in air handling units and chillers, where precise control preserves comfort while minimizing energy use. Feature → Application: The HVAC specific primary settings menu and help assistants shorten startup, commissioning, and ramp-up times, enabling facilities teams to deploy systems faster and with fewer errors. This is especially valuable in multi-zone buildings and critical environments where downtime is expensive. Feature → Application: Optional Bluetooth connectivity enables commissioning and monitoring from a distance, cutting site visits and enabling timely adjustments without on-site service calls. This supports remote diagnostics and faster fault isolation in large fleets of HVAC drives. Feature → Application: The IP21 enclosure with wall mounting supports quick, space-saving installations, while optional IP55 and flange mounting units broaden deployment across rugged or dusty environments. This flexibility reduces integration bottlenecks and accelerates project schedules. Feature → Application: With a 37 kW, 73 A rating, the ACH580-01-073A-4+X1583 +N7551 delivers scalable motor control for demanding HVAC applications, offering reduced total cost of ownership through improved efficiency, reliability, and easier maintenance. This makes it suitable for air handling units, rooftop units, pumps and chillers in commercial and industrial facilities.
Get a Quick Quote for a ABB 3ABD00047433-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00047433-D?
Enquire Now
FAQs
The ACH580-01-073A-4+X1583 +N7551 is a low voltage drive designed to control three phase motors in HVAC systems. It supports fans, pumps, and compressors, with applications spanning air handling units, chillers, and rooftop units. The drive provides HVAC specific control logic, built-in protection, and scalable performance for 37 kW installations at 73 A, with a compact wall mounted footprint.
The optional Bluetooth connectivity enables remote commissioning and monitoring, allowing technicians to configure settings, troubleshoot, and verify performance from a distance. This reduces on-site visits, speeds up start-up, and supports ongoing remote diagnostics, which is especially beneficial for multi-site deployments and preventative maintenance programs.
Plan for a wall-mounted installation with the standard IP21 enclosure, suitable for controlled indoor environments. If the site has tougher conditions, consider the IP55 flange mounting option for increased protection. Ensure proper cooling and cable routing for the 37 kW, 73 A rated drive, and account for HVAC wiring to fans, pumps, and compressors for reliable operation.
The ACH580-01-073A-4+X1583 +N7551 carries CE certification for European compliance and a standard IP21 enclosure rating, with IP55 flange mounting available as an option. These credentials support safe operation, electrical compatibility, and reliable performance in typical commercial HVAC environments.
Expect measurable ROI from energy savings due to advanced motor control and smoother startup, plus reduced downtime from intuitive commissioning tools and remote monitoring. Ongoing maintenance becomes simpler with built in protection features, diagnostics, and optional Bluetooth for proactive fault detection, contributing to lower total cost of ownership over the system’s life.
