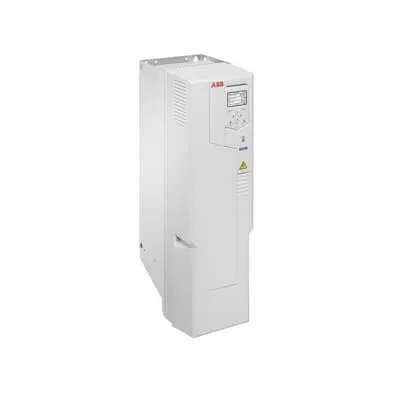

ABB ACH580 3ABD00047435-D HVAC Drive - IP21/IP55
Part Number: 3ABD00047435-D
Quick Summary
ABB ACH580 HVAC drive optimizes fan, pump and compressor control for commercial and industrial HVAC systems. Engineers often face long startup times and complex commissioning, but this drive integrates built-in HVAC features to streamline setup and reduce installation effort. CE conformity and IP protection help ensure safe, reliable operation in demanding environments, with an IP21 enclosure standard and optional IP55 or flange mounting for harsher conditions. The combination of intuitive HVAC-specific settings, a help-assisted startup, and optional Bluetooth commissioning enables remote monitoring and faster deployment. By aligning with energy-management goals, this solution supports lower operating costs while delivering predictable performance across varied applications.
Product Information
Extended Description
3ABD00047435-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC control for fans, pumps, and compressors → Business Impact: Simplifies control logic, reduces commissioning time, and improves part-load performance → Application: AHUs, chillers, rooftop units in commercial buildings. Feature: IP21 enclosure with optional IP55 and flange mounting → Business Impact: Flexible installation in serviceable or harsh environments, improved protection and serviceability → Application: Wall-mounted installations in mechanical rooms and on exterior walls. Feature: Rated 55 kW and 106 A → Business Impact: Scalable drive level for mid-size HVAC loads with reliable motor control and fewer components → Application: Medium-sized fans and pumps in HVAC systems. Feature: Built-in energy management and HVAC-specific settings → Business Impact: Enhanced energy efficiency, reduced energy costs, easier compliance with energy targets → Application: Load optimization in AHUs and chillers across variable-speed operation. Feature: Bluetooth commissioning option → Business Impact: Remote setup, commissioning, and monitoring to shorten project timelines and enable faster maintenance → Application: Field service, remote monitoring, and building management integration. Feature: Intuitive primary settings menu and help assistants → Business Impact: Faster startup, fewer misconfigurations, and improved operator training → Application: Engineering teams during installation and commissioning in HVAC projects.
Get a Quick Quote for a ABB 3ABD00047435-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00047435-D?
Enquire Now
FAQs
The ACH580 HVAC drive is designed to control fans, pumps, and compressors in HVAC systems, including air handling units (AHUs), rooftop units, and chillers, supporting up to 55 kW and 106 A with IP21 protection and optional IP55.
It features a wall-mounted design with an IP21 enclosure by default and optional IP55 or flange mounting, simplifying placement in mechanical rooms or on exterior walls while reducing wiring and setup time through built-in HVAC-specific settings.
The ACH580 comes CE conformant with IP protection suitable for HVAC environments, including IP21 standard and optional IP55 protection, supporting reliable operation in normal and harsher conditions.
By leveraging built-in HVAC control logic and extended variable-speed capabilities, it optimizes fan, pump, and compressor operation, delivering improved part-load efficiency and lower energy consumption across HVAC cycles.
Yes, there is an optional Bluetooth capability that enables commissioning and monitoring from a distance, facilitating faster startup, easier maintenance, and remote troubleshooting.
