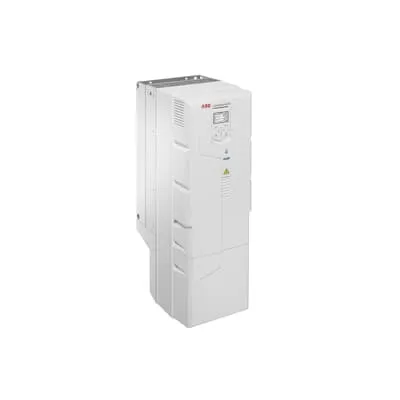

ABB ACH580-01-169A-4+X1583 +N7551 HVAC Drive - IP21 Enclosure
Part Number: 3ABD00047437-D
Quick Summary
ABB ACH580-01-169A-4+X1583 +N7551 HVAC drive optimizes motor control for building HVAC systems. Installers often contend with lengthy commissioning and inconsistent performance when managing fans, pumps, and air handling units. This drive features an IP21 enclosure with optional IP55 and flange mounting, a Bluetooth commissioning option, and HVAC specific primary settings to streamline startup and operation. By reducing installation time and improving energy efficiency, it delivers lower operating costs. It supports scalable HVAC retrofits and aligns with energy-management goals for commercial and industrial applications.
Product Information
Extended Description
3ABD00047437-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC control for fans, pumps, and compressors → Business Impact: Reduces commissioning time and setup errors → Application: AHUs and chillers in commercial buildings. Feature: Energy-efficient operation with precise speed control → Business Impact: Lowers energy consumption and operating costs → Application: Variable air volume systems and fan arrays. Feature: HVAC-specific primary settings menu with help assistants → Business Impact: Faster startup, easier troubleshooting, consistent performance → Application: New installations and retrofits. Feature: Optional Bluetooth for commissioning and monitoring → Business Impact: Remote configuration and monitoring reduces site visits → Application: Remote diagnostics for maintenance teams. Feature: IP21 enclosure with IP55 and flange mounting options → Business Impact: Installation flexibility and protection in diverse environments → Application: Wall-mounted drives in HVAC rooms and service corridors. Feature: Compatibility with LV AC motors and IEC standards → Business Impact: Seamless integration with existing motor fleets and control architectures → Application: Commercial and light-industrial HVAC installations.
Get a Quick Quote for a ABB 3ABD00047437-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00047437-D?
Enquire Now
FAQs
This wall-mounted LV AC drive is designed for HVAC applications, with an IP21 enclosure and optional IP55. It supports 90 kW and 169 A, suitable for fans, pumps, and air handling units. Plan for proper mounting, ventilation, and accessibility to the optional Bluetooth module for remote commissioning.
Yes. The ACH580 HVAC drive is purpose-built for HVAC systems, offering built-in control features for fans, pumps, and compressors, along with HVAC-specific menus to simplify configuration, commissioning, and ongoing operation in AHUs and chillers.
The drive provides HVAC-focused primary settings and built-in control capabilities that align with standard LV AC motor control practices. Optional Bluetooth enables remote commissioning and monitoring, supporting integration with BAS/automation workflows and reducing on-site service visits.
The device features an IP21 enclosure, with optional IP55 and flange mounting options for installation flexibility in HVAC rooms. It is designed for IEC LV AC applications and supports HVAC-specific control features to meet industry application requirements.
The ACH580 reduces installation time through HVAC-tailored menus and built-in features, while enabling energy-efficient operation for fans and pumps. Remote commissioning via Bluetooth lowers maintenance costs, and reliable IEC-compliant design supports long-term ROI in commercial HVAC retrofits.
