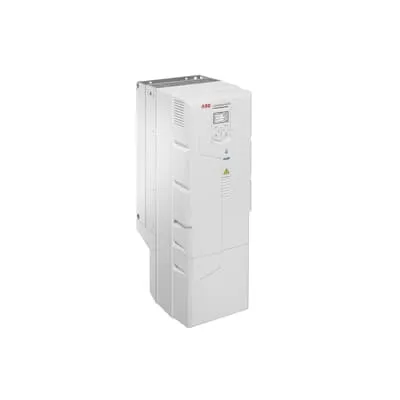

ABB ACH580-01-206A-4+X1583 HVAC Drive - IP21 Wall-Mounted
Part Number: 3ABD00047438-D
Quick Summary
The ABB ACH580-01-206A-4+X1583 HVAC drive delivers precise fan, pump, and compressor control for HVAC systems. Designed to ease commissioning, it reduces wiring complexity and shortens start-up times, addressing project delays and on-site handoffs. Key certifications and enclosures include an IP21 standard enclosure, with IP55 and flange-mount options, supporting installation in varied HVAC plant rooms; Bluetooth-enabled remote setup is available to streamline commissioning. Coupled with an HVAC-focused control panel and energy-efficient motor control, it helps facilities meet sustainability goals while lowering total cost of ownership. This solution supports reliable, scalable performance for modern commercial and industrial HVAC installations, with remote monitoring options to minimize maintenance interruptions.
Product Information
Extended Description
3ABD00047438-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC control algorithms for fans, pumps, and compressors → Business Impact: Reduces external hardware and wiring, delivering smoother operation and energy efficiency → Application: Ideal for HVAC systems in commercial buildings, data centers, and hospitals. Long-tail keywords: low-voltage HVAC drive, drive for fans and pumps, energy-efficient motor control. Feature: Intuitive HVAC primary settings menu and built-in help assistants → Business Impact: Accelerates startup, reduces training costs, minimizes misconfiguration → Application: Quick commissioning in retrofit or new-build projects. Long-tail keywords: HVAC control panel, commissioning assistants, trouble-free startup. Feature: Optional Bluetooth connectivity for remote commissioning and monitoring → Business Impact: Enables remote fault diagnosis, reduces on-site visits, improves uptime → Application: Remote sites, critical facilities, and service contracts. Long-tail keywords: Bluetooth-enabled drive, remote monitoring, remote commissioning. Feature: IP21 enclosure by default with IP55 and flange-mount options → Business Impact: Flexible installation, enhanced protection in varying environments → Application: Wall-mounted installations in plant rooms and mechanical rooms. Long-tail keywords: IP21/IP55 options, wall-mounted enclosure, mechanical room deployment. Feature: Compatibility with ACH580 ecosystem and energy-saving capabilities → Business Impact: Streamlined integration with existing ABB drives, reduced lifecycle costs → Application: Upgrading HVAC drives in multi-unit facilities. Long-tail keywords: ACH580 compatibility, HVAC energy efficiency, integrated drive solutions. Objections addressed: built-in features reduce need for external components, Bluetooth and remote management lower maintenance costs, IP-rated enclosures suit harsh environments. Industry context: installers and engineers gain faster commissioning timelines, better fault isolation, and compliant component choices.
Get a Quick Quote for a ABB 3ABD00047438-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00047438-D?
Enquire Now
FAQs
The ACH580-01-206A-4+X1583 is a wall-mounted, low-voltage HVAC drive designed for fans, pumps, and compressors. It integrates with standard ABB drive systems and supports IP21 enclosures with IP55 option, offering straightforward mounting and wiring suitable for new-build or retrofit HVAC projects.
Key specs include a power rating of 110 kW (Pn 110 kW) and a current rating of 206 A. The unit is housed in an IP21 enclosure by default, with IP55 option available, and supports a wall-mounted installation suitable for HVAC environments.
Yes. This drive is purpose-built for HVAC applications, including fans, pumps, and compressors, with HVAC-specific control features and an intuitive settings menu to simplify startup, commissioning, and operation in HVAC systems such as AHUs and chillers.
The standard configuration uses an IP21 enclosure with wall-mount capability. IP55 and flange-mount options are available to address higher protection requirements and installation constraints in mechanical rooms and plant spaces.
Bluetooth-enabled commissioning and monitoring reduce on-site visits, speed fault diagnosis, and streamline updates, which lowers maintenance costs, minimizes downtime, and shortens project delivery in remote or hard-to-access HVAC deployments.
