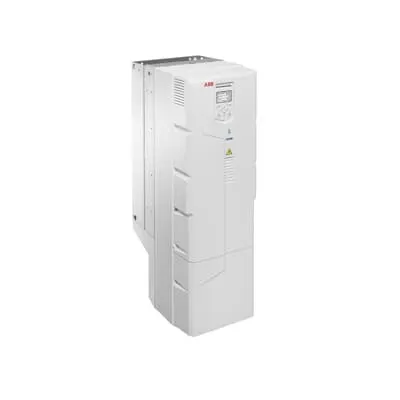

ABB ACH580 3ABD00047439-D Motors & Drives - IP21 HVAC
Part Number: 3ABD00047439-D
Quick Summary
ACH580 HVAC drive controls fans, pumps, and compressors in HVAC systems. Installing and commissioning drives can be time-consuming, but built-in HVAC-specific menus and setup assistants help reduce startup time. The standard IP21 enclosure—with IP55 and flange-mount options—addresses safety and reliability in evolving environments. Remote Bluetooth capability enables monitoring and commissioning from a distance, while energy-efficient control reduces operating costs. This wall-mounted LV drive integrates seamlessly with HVAC equipment, AHUs, and chillers, delivering quicker retrofits and scalable control across new installations.
Product Information
Extended Description
3ABD00047439-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
The ACH580 HVAC drive offers a range of features that translate into measurable business benefits. HVAC-specific primary settings and built-in help assistants streamline commissioning, shorten project timelines, and reduce commissioning errors, enabling faster project handover on air-handling unit and chiller installations. Optional Bluetooth enables remote commissioning and continuous monitoring, cutting on-site service visits and supporting cross-site diagnostics. The IP21 enclosure standard provides reliable operation in typical plant environments, while IP55 and flange-mount options expand deployment in harsher spaces and retrofit scenarios. With a 132 kW, 246 A rating, the ACH580 is properly sized for mid-to-large HVAC loads, delivering precise speed control and energy-efficient operation. Compatibility with the ACH580 family ensures scalable HVAC control as system needs evolve, while a compact wall-mount form factor simplifies retrofits and new-build installations. In practice, facilities realize reduced downtime, lower energy consumption, and faster maintenance planning thanks to built-in diagnostics and intuitive configuration.
Get a Quick Quote for a ABB 3ABD00047439-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00047439-D?
Enquire Now
FAQs
Yes. The ACH580 is designed as a wall-mounted LV drive with a compact footprint ideal for retrofit projects in HVAC rooms. It supports fans, pumps, and compressors commonly found in air-handling units and chillers. IP21 enclosure is standard, with IP55 options available to accommodate harsher environments, simplifying retrofits without sacrificing accessibility for maintenance.
Model 3ABD00047439-D is rated for 132 kW and 246 A in a low-voltage HVAC drive. It is built for wall-mounted installation and comes with IP21 enclosure as standard, with IP55 and flange-mount options available. This sizing supports medium-to-large HVAC loads while enabling precise speed control and smooth operation for fans, pumps, and compressors.
Yes. The ACH580 offers optional Bluetooth connectivity to enable commissioning and monitoring from a distance. Remote access supports startup adjustments, parameter verification, and ongoing performance checks without on-site visits. This capability is particularly valuable for multi-site facilities, energy audits, and proactive maintenance programs.
Absolutely. The ACH580 HVAC drive is purpose-built for HVAC systems, including air-handling units, chillers, and associated fans and pumps. Its HVAC-specific control panel and built-in assistants simplify startup, while the drive’s robust sizing (132 kW, 246 A) ensures reliable operation across typical AHU and chiller workloads.
The ACH580 delivers measurable ROI through improved energy efficiency, reduced idle and peak demand costs, and accelerated commissioning. Built-in features shorten installation time, while remote monitoring lowers maintenance visits and supports predictive diagnostics. Over time, facilities benefit from lower operating costs, fewer unscheduled outages, and a scalable platform for expanding HVAC control needs.
