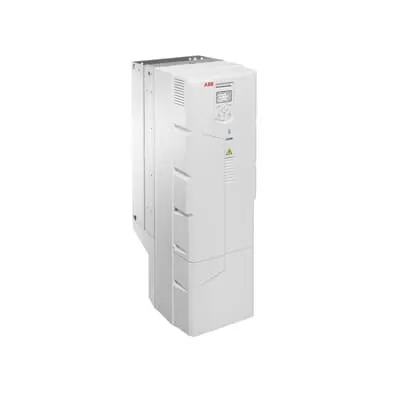

ABB ACH580-01-293A-4 HVAC Drive - IP21 Enclosure
Part Number: 3ABD00047440-D
Quick Summary
ABB ACH580-01-293A-4 HVAC drive is a wall-mounted LV AC drive designed to optimize fans, pumps, and compressors in HVAC systems. For engineers, long commissioning times and startup uncertainty are common pain points; this drive reduces those with HVAC-specific primary settings and built-in help assistants. It provides IP21 enclosure as standard, with IP55 and flange mounting options for harsher environments, helping ensure reliability in mission-critical facilities. The included intuitive control panel speeds setup and commissioning, while optional Bluetooth enables remote monitoring and tuning. When paired with HVAC layouts, this drive delivers energy-efficient operation, scalable control, and a faster return on investment, supporting retrofit or new-build projects.
Product Information
Extended Description
3ABD00047440-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Built-in HVAC control features streamline startup and improve control accuracy. By embedding primary settings for fans, pumps and compressors, the ACH580-01-293A-4 reduces commissioning time and minimizes configuration errors. This is especially valuable in modern air handling units and packaged AC systems where precise speed control translates to stable indoor conditions and energy savings. Energy-efficient motor control with true variable-speed operation lowers energy consumption and reduces wear on critical equipment. In HVAC applications, this translates to lower utility bills and longer asset life, while keeping comfort and process requirements within tolerance. The 160 kW nominal power and 293 A rating support large fans and pumps with responsive performance. Installation and compatibility are enhanced by a compact wall-mounted form factor that simplifies room layouts and reduces cabinet space requirements. Standard IP21 protection supports typical indoor environments, with IP55 and flange-mount variants expanding placement options. The drive is designed for quick integration with common HVAC controls, PLCs, and fieldbus networks, accelerating project delivery. Optional Bluetooth enables remote commissioning, troubleshooting, and monitoring, reducing site visits and speeding up startup and tuning. Remote access supports firmware updates and parameter adjustments, improving operational visibility for facilities teams and service partners. Reliability and serviceability are strengthened by built-in diagnostics and HVAC-specific control menus, supporting proactive maintenance and fast fault triage. This combination of protection, usability, and robust troubleshooting helps HVAC projects achieve lower downtime and predictable lifecycle costs.
Get a Quick Quote for a ABB 3ABD00047440-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00047440-D?
Enquire Now
FAQs
Key installation considerations include selecting a suitable wall-mount location with adequate clearance for heat dissipation, wiring to the LV distribution, and ensuring ventilation. The standard IP21 enclosure supports typical indoor environments, while IP55 and flange-mount variants extend placement options for harsher spaces. The optional Bluetooth capability enables remote commissioning, reducing on-site time and accelerating project timelines.
The drive provides built-in HVAC-specific control features that enable precise speed control for fans, pumps and compressors, improving process stability and energy efficiency. With a 160 kW nominal power rating and 293 A current capacity, it supports large equipment while maintaining responsive performance during load changes. Fieldbus compatibility and a dedicated control panel simplify integration into existing HVAC control architectures.
Yes. The ACH580-01-293A-4 is supplied with an IP21 enclosure as standard, and there are IP55 and flange-mount variants available for more demanding environments. This flexibility supports installations ranging from clean mechanical rooms to harsher plant spaces, enabling retrofit or new-build projects without extensive cabinet changes.
The drive offers IP-rated protection and robust LV-drive construction to support general industry safety expectations. For region-specific regulatory compliance, verify local electrical codes and system integration requirements. The device’s protection features and HVAC-focused control capabilities help align with common industry standards for critical facility operation.
Expect a favorable ROI driven by energy savings from precise speed control and reduced motor wear, along with faster commissioning due to HVAC-specific menus. Built-in diagnostics and optional remote commissioning cut on-site service time, improving uptime. Over the life of the system, maintenance costs typically decline due to better fault visibility and easier parameter adjustments.
