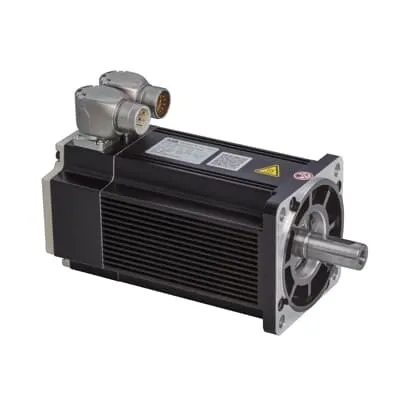

ABB 3ABD00047610 HDS motor - IP54 protection rating
Part Number: 3ABD00047610
Quick Summary
HDS motor from ABB delivers precise servo motion for automated machinery and packaging lines. It addresses common pain points like slow start-up, overshoot, and high maintenance in continuous production environments. With an IP54 protection rating, a low rotor inertia of 0.000131 kg/m², and the 17-bit multi-turn SmartABS encoder, this motor combines rugged durability with high-precision positioning. Its 100 mm flange and 230 VAC three-phase power enable straightforward integration into existing drive trains, while the integrated brake supports safer, easier stall protection. For engineers and procurement teams, this translates to reduced downtime and a clearer path to scalable automation projects.
Product Information
Extended Description
3ABD00047610 ABB: HDS series motor, 230 VAC, flange size 100 mm, low inertia, 0.75 kW, 17-bit multi-turn SmartABS, key, brake, no seal
Configuration Only
No
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
WMSACNURMQ | CSB | CSC
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
ABB Type Designation
HDS100-0308AMKBN
CN8
85044088
Country of Origin
China (CN)
Customs Tariff Number
8501520000
Degree of Protection
IP54
Flange Size Range
100 mm
Frame Size
A
Global Commercial Alias
HDS100-0308AMKBN
Gross Weight
5.93 kg
HS Code
850152-- Electric motors and generators (excluding generating sets).- Other AC motors, multi-phase :-- Of an output exceeding 750 W but not exceeding 75 kW
Input Voltage (Uin)
230 V
Invoice Description
HDS series motor, 230 VAC, flange size 100 mm, low inertia, 0.75 kW, 17-bit multi-turn SmartABS, key, brake, no seal
Made To Order
No
Maximum Peak Current
15.5 A
Maximum Peak Torque
7.5 N·m
Maximum Speed
4000 r/min
Minimum Order Quantity
1 piece
Motor Power AC-3
0.75 kW
Number of Phases
3
Order Multiple
1 piece
Package Level 1 Depth / Length
360 mm
Package Level 1 Height
187 mm
Package Level 1 Units
1 carton
Package Level 1 Width
165 mm
Product Name
HDS motor
Product Net Depth / Length
253.5 mm
Product Net Height
140 mm
Product Net Weight
5.47 kg
Product Net Width
100 mm
Product Type
HDS_servo_motor
Quote Only
No
Rated Output Current
4.3 A
Rated Speed
3000 r/min
Rated Torque
2.5 N·m
Replaced Product ID (OLD)
3ABD00024309
Rotor Inertia (I)
0.000131 kg/m²
Selling Unit of Measure
piece
Shaft Diameter
19 mm
Shaft Length
40 mm
Short Description
HDS series motor, 230 VAC, flange size 100 mm, low inerita, 0.75 kW, 17-bit multi-turn SmartABS, key, brake, no seal
Stocked At (Warehouses)
Zhengzhou, China | Beijing, China | Beijing, China
Two Speed Motor
No
UNSPSC
26101109
WEEE B2C / B2B
Business To Business
WEEE Category
Product Not in WEEE Scope
Feature → Business Impact → Application: The HDS motor employs a 0.75 kW, 230 VAC three-phase rating, providing strong, reliable torque during start/stop cycles while maintaining energy efficiency in continuous operation. This translates to shorter cycle times and lower energy consumption on high-speed packaging lines and conveyor systems, enabling better line throughput without expanding electrical infrastructure. Feature → Business Impact → Application: The 17-bit multi-turn SmartABS encoder delivers precise, repeatable positioning, improving downstream assembly accuracy and reducing part misplacement in automated pick-and-place tasks. This allows more consistent product quality in robotics applications and CNC-driven processes. Feature → Business Impact → Application: The low rotor inertia (I = 0.000131 kg/m²) enables rapid acceleration and deceleration, boosting dynamic response in high-speed sorting and material handling while minimizing peak current and wear. Feature → Business Impact → Application: The 100 mm flange size, 19 mm shaft and 40 mm shaft length simplify retrofit and integration into standard motor mounts, reducing installation time and minimizing custom fabrication for legacy systems. Feature → Business Impact → Application: IP54 protection provides resistance to dust and splashes in harsh manufacturing environments, lowering maintenance frequency and extending uptime in metalworking, food processing, and automotive assembly lines. Feature → Business Impact → Application: The integrated brake and solid mechanical design improve safety during tool changes and stop-and-hold operations, supporting safer automated workflows and easier maintenance planning across industrial automation projects. Throughout, the motor’s 3-phase, 230 V input supports common industrial drives, ensuring compatibility with existing ABB controllers and third-party servo systems, while stock availability at multiple warehouses accelerates project timelines.
