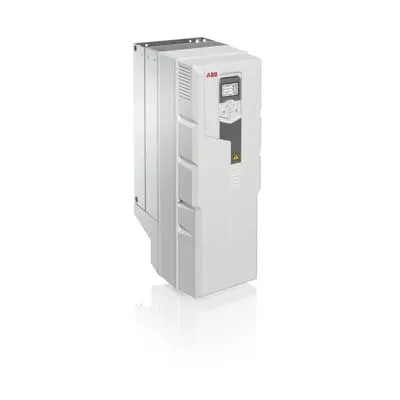

ABB ACS580-01-145A-4+X1664 Drive - IP21 Wall-Mounted
Part Number: 3ABD00047942-D
Quick Summary
ACS580-01-145A-4+X1664 is a wall-mounted LV AC general purpose drive that enables precise motor control for compressors, conveyors, pumps, and more. Engineers often wrestle with lengthy commissioning, tuning hurdles, and integration challenges when upgrading motor controls. This ABB drive ships with an IP21 enclosure as standard, with IP55 and flange-mount variants available to match harsher environments, helping ensure reliable operation in a wide range of plants. Its built-in features, straightforward setup, and robust design translate to faster deployments, reduced maintenance, and lower total cost of ownership. For automation projects and OEM integrations, the ACS580-01-145A-4+X1664 delivers predictable performance with familiar ABB tooling and guidance, supporting both variable and constant torque applications while keeping operation simple and cost-effective.
Product Information
Extended Description
3ABD00047942-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Plug-in ready architecture with built-in essential features reduces hardware purchases and minimizes integration time, accelerating project timelines and lowering upfront costs in light-industrial installations. Feature → Business Impact → Application: An intuitive settings menu and built-in assistants enable fast commissioning and simplified maintenance, cutting downtime during startups and upgrades for pumps, fans, and conveyors in processing lines. Feature → Business Impact → Application: IP21 standard enclosure with available IP55 and flange mounting options provides installation flexibility and resilience in diverse plant environments, helping facilities meet safety and reliability targets. Feature → Business Impact → Application: Rugged, robust design delivers long-term reliability in food & beverage, plastics, textiles, and material handling environments, reducing spare-part inventories and service intervals. Feature → Business Impact → Application: Compatibility across the ACS580 family ensures consistent performance across variable and constant torque applications, enabling seamless OEM integration and scalable automation strategies. Feature → Business Impact → Application: Built-in protection and diagnostics support energy efficiency goals, lower maintenance costs, and improved process visibility for compressors, extruders, and mixers in light-industrial setups.
Get a Quick Quote for a ABB 3ABD00047942-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00047942-D?
Enquire Now
FAQs
The ACS580-01-145A-4+X1664 is a wall-mounted low-voltage drive shipped with an IP21 enclosure as standard. IP55 and flange mounting variants are available, providing installation flexibility for harsher environments or specialized OEM layouts. It is designed to control motors in compressors, pumps, conveyors, and other light-industrial equipment, ensuring straightforward integration with ABB’s drive ecosystem.
Key specifications include a power rating of 75 kW and a continuous current rating of 145 A, intended for LV AC general purpose applications. The drive is plug-in ready, supports variable and constant torque applications, and is designed to simplify configuration and commissioning while delivering robust motor control in a compact wall-mounted form factor.
Yes. ABB emphasizes a versatile design suitable for light industries, including food & beverage, plastics, textiles, and material handling. The drive’s built-in features, protected enclosure options, and straightforward setup support reliable operation in environments with cleanability, safety, and uptime considerations common to these sectors.
The standard IP21 enclosure provides basic protection for general installations, with IP55 and flange-mount variants available for more demanding conditions. These IP ratings matter because they influence where and how the drive can be installed, affecting ingress protection, maintenance access, and overall reliability in manufacturing environments.
Benefits include reduced commissioning time due to built-in features and a straightforward settings menu, lower spare-part and integration costs from compatibility with the ACS580 family, and improved process reliability via robust construction and diagnostics. Over time, these factors contribute to shorter downtime, improved energy efficiency, and a favorable return on investment for light-industrial automation projects.
