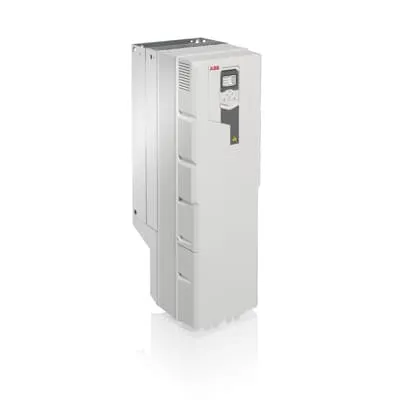

ABB ACS580-01-293A-4+X1664 Wall-Mounted Drive - IP21
Part Number: 3ABD00047946-D
Quick Summary
ACS580-01 is a LV AC general purpose wall-mounted drive that delivers precise motor control for compressors, conveyors, pumps and fans in automation lines. Many engineers struggle with lengthy commissioning, excessive hardware, and inconsistent performance when integrating drives with legacy equipment. The wall-mounted ACS580-01 ships with an IP21 enclosure by default, with IP55 and flange options to suit harsher environments, and it includes built‑in setup assistants that accelerate configuration. With plug‑in readiness and a 160 kW, 293 A rating, it helps reduce installation time and total cost of ownership, while enabling scalable plant automation and tighter process control across diverse industries such as food, plastic, and material handling.
Product Information
Extended Description
3ABD00047946-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature: Plug-in ready with built-in features → Business Impact: Reduces BOMs, speeds installation, and minimizes现场 wiring complexity → Application: Ideal for compressors, conveyors, pumps, and fans in light industrial lines. Feature: Intuitive settings menu and assistants → Business Impact: Accelerates commissioning and simplifies maintenance, lowering downtime → Application: Suitable for rapid startup in packaging, processing, and material handling environments. Feature: IP21 standard enclosure with IP55 option and flange mounting → Business Impact: Flexible installation for cleanrooms, outdoor-adjacent spaces, or areas with mounting constraints → Application: Food & beverage lines, plastics processing, textiles, and agriculture equipment. Feature: High power rating of 160 kW and 293 A → Business Impact: Supports both variable torque and constant torque loads with robust performance → Application: Drives for pumps, extruders, centrifuges, mixers, and large fans. Feature: Rugged, robust design and built-in protection → Business Impact: Improves uptime and reliability in demanding environments → Application: Industrial automation applications across multiple sectors, including material handling and packaging. Feature: All essential features built-in as standard → Business Impact: Eliminates need for extra hardware, reducing installation costs and complexity → Application: Streamlined deployments in light industries and plant-wide control systems.
Get a Quick Quote for a ABB 3ABD00047946-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00047946-D?
Enquire Now
FAQs
The ACS580-01-293A-4+X1664 is designed for wall mounting with IP21 as standard. Plan for adequate ventilation, proper heat dissipation, and secure mounting to minimize vibration. Consider IP55 option if the location has higher dust or moisture exposure, and ensure supply wiring matches the 160 kW, 293 A rating for reliable operation.
This drive provides up to 160 kW (Pn) and 293 A current, suitable for variable and constant torque loads. It supports control of compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans, delivering precise speed and torque with built-in setup assistants to streamline commissioning.
Yes, the ACS580-01 is described as a wall-mounted, general purpose LV drive with a rugged design suitable for light industries, including food and beverage. With IP21 standard and optional IP55 mounting, it supports clean environments and reliable operation in process lines.
The standard enclosure is IP21, with IP55 and flange mounting options available. This combination provides protection against dust and water ingress suitable for many plant environments, while maintaining compatibility with ABB’s control architecture for industrial automation.
Built-in features and setup assistants reduce commissioning time and minimize the need for extra hardware, lowering upfront costs. The rugged design enhances uptime, and plug-in readiness simplifies future upgrades or expansions, delivering faster time-to-value for plant-wide motor control.
