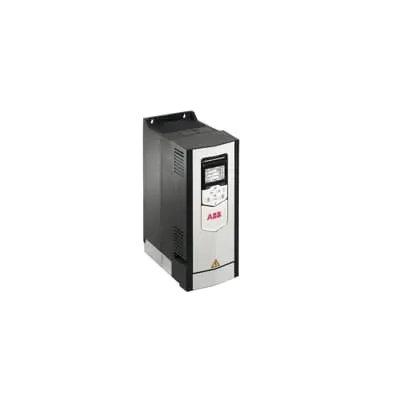

ABB ACS880-01-017A-3+N5700 Drive - Position Control
Part Number: 3ABD00048178-D
Quick Summary
ACS880-01-017A-3+N5700 is a wall-mounted LV AC drive delivering precise position control for machinery axes. Engineers often struggle with configuring motion profiles and wiring drives into existing PLC architectures, leading to delays and startup risk. The device leverages PLCopen motion control blocks, straightforward parameterization, and dependable IEC safety and EMC performance to meet demanding industrial standards. CE conformity with robust industrial design reduces integration risk and supports long-term reliability. This combination translates to faster deployment, reduced wiring complexity, and lower total cost of ownership for production machinery and material handling systems. In short, it delivers reliable, scalable motion control within a compact footprint for diverse automation applications.
Product Information
Extended Description
3ABD00048178-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature → Business Impact → Application: The ACS880-01-017A-3+N5700 includes a position control program (+N5700) that delivers precise axis movement. This capability reduces positional errors and improves repeatability in automated handling, enabling tighter tolerances on conveyors, robotic arms, and pick-and-place systems. Applications include manufacturing cells where accurate staging and synchronized motion matter most. Feature → Business Impact → Application: Motion functions based on PLCopen blocks and parameter-driven configuration shorten engineering time and allow rapid reconfiguration when production lines change, reducing downtime and project risk. Applications include generic production machinery and packaging lines that require flexible motion profiles. Feature → Business Impact → Application: Wide compatibility with motors and PLCs enables seamless integration with existing plant controls, reducing wiring, debugging time, and engineering effort. Applications span OEM equipment and system-integrator projects across multiple lines. Feature → Business Impact → Application: The high power rating of 7.5 kW at 17 A in a compact, wall-mounted LV drive delivers strong performance while saving cabinet space and simplifying installations. Applications include conveyors, hoists, and high-load axes in material handling and packaging. Feature → Business Impact → Application: Parameter-based setup and built-in diagnostics shorten commissioning, improve maintenance efficiency, and support remote service. Applications suit turnkey automation projects and multi-line deployments across factories.
Get a Quick Quote for a ABB 3ABD00048178-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048178-D?
Enquire Now
FAQs
Plan for a wall-mounted installation near the motor, with proper cooling and secure 3-phase power feeds. Use PLCopen motion blocks for standard programming interfaces, ensure PLC and drive communication channels are configured to the same baud rate and protocol, and verify motor wiring and protection settings to minimize commissioning time and field service visits.
Expect strong torque development at low to mid speeds with smooth acceleration and deceleration controlled by parameterized motion profiles. The +N5700 position control enables precise axis positioning, which improves repeatability on conveyors, robots, and pick-and-place cells. Real-world performance will depend on motor selection, gearing, and load profiles, but optimization via PLCopen blocks is straightforward.
Yes. The ACS880-01-017A-3+N5700 is well suited for high-power axis control required in conveyors and material-handling applications. Its position control capability, PLCopen-based motion functions, and easy PLC integration support synchronized belt movements, accurate stops, and repeatable positioning, all while reducing commissioning time and wiring complexity.
ABB drives in this family typically comply with CE requirements for EU safety and EMC directives and are designed for industrial environments with robust protection features. While specific IP ratings and SIL options depend on the exact installation and configuration, the device is built for rugged automation applications and regulator-aligned performance.
The integrated position control and PLCopen-based configuration reduce engineering time and field wiring, accelerating time-to-value. Long-term maintenance benefits come from simplified diagnostics and remote support capabilities, fewer spare parts for coordination between controllers, and extended mean time between failures due to a compact, robust design.
