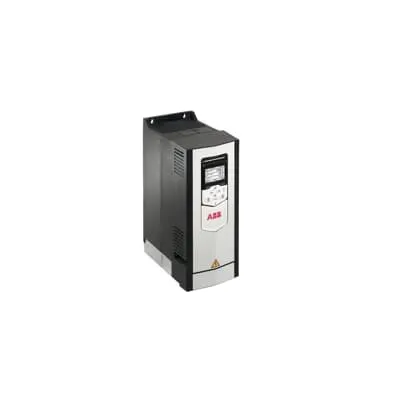

ABB 3ABD00048179-D ACS880 Drive - PLCopen Motion Control
Part Number: 3ABD00048179-D
Quick Summary
The ABB ACS880 drive is a high-power LV AC solution with precise position control for industrial machinery. Engineers often struggle with tuning, PLC integration, and reliable motion across complex axes. This platform supports CE compliance and robust IP-rated enclosure options; SIL considerations are supported in configured applications. By combining flexible programming, easy integration, and scalable motion control, you can reduce downtime and accelerate time-to-market. This drive suite is ideal for production machinery and material handling, delivering reliable performance in demanding environments. The included N5700 option enables high-power position axes, while parameter-based configuration shortens commissioning cycles. Leverage ABB's connectivity to PLCs for seamless ecosystem integration.
Product Information
Extended Description
3ABD00048179-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: Position control program (+N5700) in the ACS880-01-025A-3+N5700. Business Impact: Delivers deterministic, high-power position accuracy for long-stroke axes, improving repeatability and reducing cycle time. Application: high‑demand axes in packaging lines and material handling where precise end-positioning matters. Feature: PLCopen motion control blocks as the core motion engine. Business Impact: simplifies setup with modular blocks and parameter-driven tuning, shortening engineering time and reducing commissioning risk. Application: new line builds and retrofit projects across production machinery. Feature: Parameter-based configuration and broad motor/PLC connectivity. Business Impact: enables rapid deployment and easy horizontal scaling across multiple machines with consistent behavior. Application: systems requiring seamless integration with existing PLCs and motor fleets. Feature: Wall-mounted LV AC drive design. Business Impact: compact footprint supports streamlined cabinet layouts, easier service access, and reduced installation complexity. Application: space-constrained control panels in manufacturing and logistics environments. Feature: Robust programming flexibility and industry-aligned workflows. Business Impact: supports long-term maintainability, easier updates, and compliance with industry automation practices. Application: material handling, automation lines, and bespoke production machinery requiring adaptable motion profiles.
Get a Quick Quote for a ABB 3ABD00048179-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048179-D?
Enquire Now
FAQs
ABB ACS880 supports broad motor compatibility and PLC connectivity, enabling straightforward integration with common industrial PLCs. The +N5700-position control option provides deterministic axis behavior, while PLCopen motion blocks streamline the interface between drive and control system. For retrofit projects, verify motor type, encoder feedback, and PLC protocol compatibility in the project specification to ensure seamless integration and predictable performance.
The drive delivers 11 kW of output power with a nominal current of 25 A, designed for high-power position control tasks. It is a wall-mounted LV AC solution that supports precise end-positioning, parameter-based configuration, and PLCopen-based motion control. These specs enable robust control of heavy-axis applications such as material handling, packaging lines, and automated assembly.
Yes. The ACS880-01-025A-3+N5700 is built for high-power position control axes common in material handling. With +N5700, PLCopen motion blocks, and parameter-driven setup, it offers reliable trajectory control, repeatable positioning, and easy scalability across multiple conveyors, sorters, and robotic cells. Proper encoder feedback and motor matching are recommended to maximize precision and uptime.
The ACS880 family is designed to support standard industry certifications such as CE for market access and compatible IP-rated configurations for harsh environments. Exact IP rating and SIL capabilities depend on the enclosure and configuration chosen. Always confirm the specific model datasheet for the required certifications and protection ratings before deployment in regulated environments.
Expected ROI comes from reduced commissioning time, lower integration risk, and improved uptime due to deterministic motion. The parameter-based configuration and PLCopen blocks enable faster updates and easier maintenance. Regular firmware updates, encoder calibration, and motor health monitoring should be scheduled to sustain optimal performance and extend equipment life in production lines.
