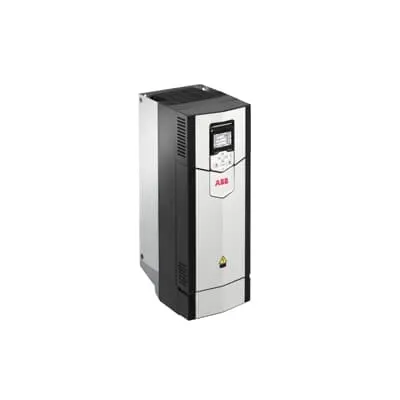

ABB 3ABD00048182-D LV AC drive - ACS880-01-045A-3+N5700
Part Number: 3ABD00048182-D
Quick Summary
ABB 3ABD00048182-D is a LV AC drive with position control designed for high-power motion control on production machinery. Engineers often struggle with tuning complex motion profiles and integrating drives with existing PLCs; this solution simplifies commissioning through PLCopen motion control blocks and parameter-driven configuration. Key certifications and standards for industrial drives—CE marking and IEC/UL safety compliance—support robust, global deployment, while rugged enclosures protect critical components in harsh environments. By combining tight axis control with easy connectivity to motors and PLCs, it delivers faster time-to-value, reduced downtime, and predictable performance across line-side and OEM applications.
Product Information
Extended Description
3ABD00048182-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: Position control program (+N5700) enables precise axis motion. Business Impact: Improves positioning accuracy and reduces scrap, shortening production cycles. Application: Packaging lines and pick-and-place systems where exact repeatability is critical. Feature: 22 kW, 45 A power rating handles heavy loads. Business Impact: Higher throughput with smoother torque delivery and faster cycle times. Application: Material handling conveyors and machine tools requiring robust power. Feature: PLCopen motion control blocks for flexible programming. Business Impact: Faster commissioning, easier maintenance, and scalable control schemes. Application: OEM machinery and automation panels where future upgrades are planned. Feature: Wall-mounted LV AC drive design. Business Impact: Saves panel space, reduces wiring complexity, and simplifies installation. Application: Compact automation cabinets in machine builders’ shops. Feature: Easy connectivity to motors and PLCs with built-in interfaces. Business Impact: Lower integration risk and shorter time-to-market. Application: Systems integrating ABB or third-party components in multi-brand lines. Feature: Industry-standard compliance and reliability. Business Impact: Higher uptime, easier spares management, and predictable service life. Application: Harsh production environments and long-term asset management.
Get a Quick Quote for a ABB 3ABD00048182-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048182-D?
Enquire Now
FAQs
To install the 3ABD00048182-D with the ACS880-01-045A-3+N5700, verify motor rating is 22 kW and current rating is 45 A, then wire per ABB commissioning guides. Use the built-in PLCopen motion control blocks to configure axis parameters and load the N5700 position control program. Ensure control cabinet wiring adheres to local standards and perform a controlled test with a light load before full operation.
The drive combines a dedicated N5700 position control program with PLCopen motion control blocks, enabling precise, repeatable axis motion. Its 22 kW, 45 A capability supports demanding loads, while parameter-driven configuration simplifies tuning. This combination delivers accurate positioning, smooth accelerations, and reliable operation across production machinery and material handling applications.
Yes. With its high-power capability, precise position control, and straightforward motor/PLC connectivity, the ACS880-01-045A-3+N5700 is well suited for material handling and packaging lines. The PLCopen-based programming reduces commissioning time, while robust axis control ensures consistent throughput and reduced scrap, helping you meet tight production targets and maintain uptime.
Industrial drives like this ABB model typically align with CE marking and general IEC/UL safety standards to support global deployment. While exact IP ratings and certifications depend on enclosure and regional variants, selecting a compliant drive helps meet regulatory requirements, simplifies cross-border maintenance, and supports service-level agreements across sites.
Expect reduced downtime due to reliable motion control and easier diagnostics via PLCopen-friendly blocks. ROI improves through higher throughput, lower scrap, and simpler spare parts planning within the ABB ecosystem. Regular firmware updates, proper thermal management in the wall-mounted enclosure, and periodic parameter reviews help sustain performance and extend asset life.
