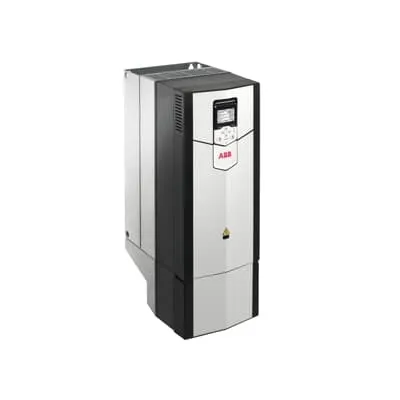

ABB ACS880-01-105A-3+N5700 Drive - CE Certified
Part Number: 3ABD00048186-D
Quick Summary
ABB ACS880-01-105A-3+N5700 drive provides precise position control for high-power industrial automation. Manufacturers often battle complex motion setup and long commissioning cycles; this drive streamlines integration with PLCopen motion control blocks and parameter-driven tuning. CE compliance supports global deployments, with SIL-ready options and IP-rated configurations available across ACS880 variants to enhance reliability. The solution also helps reduce downtime and lifecycle costs through scalable software, flexible connectivity to motors and PLCs, and straightforward installation for production machinery and material handling environments.
Product Information
Extended Description
3ABD00048186-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: Position control program (+N5700) with PLCopen motion control blocks. Business Impact: Delivers accurate, repeatable axis positioning and simplified diagnostics, shortening time-to-value. Application: Packaging lines and automated material handling where precise motion is essential. Feature: 55 kW, 105 A power rating. Business Impact: Enables driving large motors with a compact footprint, reducing the need for multiple drives and saving cabinet space. Application: Heavy conveyors, presses, and high-torque axes in production lines. Feature: Wall-mounted, space-efficient enclosure. Business Impact: Easier installation and maintenance in tight plant spaces, improving uptime and serviceability. Application: Machinery control panels and machine encloses with limited mounting area. Feature: Broad compatibility and connectivity to motors and PLCs. Business Impact: Faster commissioning, reduced integration risk, and seamless upgrades in multi-brand environments. Application: Modern factories upgrading legacy lines to unified automation. Feature: Programming flexibility and runtime options. Business Impact: Reusable code bases, standardized motion blocks, and scalable architectures that support future expansions. Application: Flexible automation projects and evolving manufacturing lines with changing throughput needs.
Get a Quick Quote for a ABB 3ABD00048186-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048186-D?
Enquire Now
FAQs
For wall-mount deployment, ensure a clean, ventilated enclosure with adequate clearance for cooling and access to wiring. Use a rigid mounting surface, plan for 3-phase power input, and route motor and PLC connections to avoid interference. Verify enclosure IP protection and local electrical codes, then configure via PLCopen blocks for position control to minimize commissioning time and simplify future upgrades.
The +N5700 option enables a dedicated position control program that leverages PLCopen motion control blocks. This provides standardized, reusable motion routines, facilitates axis interpolation and trajectory planning, and reduces custom coding. Engineers can tune position loops through parameter sets, improving repeatability and reducing debugging time during integration with motors and PLCs.
Yes. With 55 kW output and 105 A current, the drive can power high-torque axes common in conveyors, sorters, and packaging equipment. Its PLCopen-based motion control and flexible connectivity support integration with existing PLCs and motor fleets, enabling precise axis control, smoother start-stop profiles, and improved line throughput in material handling and production environments.
The ACS880 family is CE compliant, designed for global deployment. ABB typically supports SIL-ready safety concepts and offers configurations with IP-rated enclosures. When selecting options, confirm the specific build for your region and safety requirements to ensure full regulatory alignment and safe operation within your automation system.
ROI stems from faster commissioning, reduced integration risk, and lower energy and maintenance costs due to precise motion control and reliable operation. The +N5700 position control simplifies programming, enabling scalable upgrades without rewrite of motion logic, which lowers total cost of ownership and supports longer asset life across production lines.
