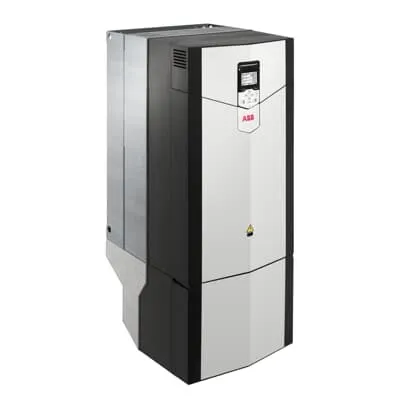

ABB 3ABD00048192-D Drive - Position Control +N5700, 200 kW
Part Number: 3ABD00048192-D
Quick Summary
The ABB 3ABD00048192-D drive enables high-power position control for heavy machinery and material handling applications. Engineers often struggle with tuning, integration, and reliable axis motion on demanding production lines. The system is designed to meet industry standards such as CE conformity and robust protection in rugged environments, with functional safety options aligned to SIL-ready configurations and protective IP ratings. Beyond software flexibility, its PLCopen-based motion blocks and the +N5700 position program deliver predictable, repeatable motion with minimal programming effort. This combination supports faster commissioning, easier maintenance, and clearer total cost of ownership, while ensuring compatibility with a wide range of motors and PLCs to maximize existing investments.
Product Information
Extended Description
3ABD00048192-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: ACS880-01-363A-3 +N5700 position control enables high-power axis motion. Business impact: PLCopen motion blocks simplify configuration, reducing commissioning time and boosting repeatability. Application: ideal for production machinery and material handling where precise stopping, speed control, and synchronized axes are critical. Feature: Broad motor and PLC connectivity lets you integrate with existing automation. Business impact: minimizes wiring, debugging, and downtime while improving diagnostics through standard interfaces. Application: conveyors, robotic cells, and automated storage systems require reliable fieldbus and motor compatibility. Feature: 200 kW power rating with 363 A current supports demanding loads. Business impact: increases torque reserve, reduces need for multiple drives, and improves line throughput. Application: heavy conveyors, winding, pressing, and extrusion lines benefit from consistent performance under peak loads. Feature: Parameter-based configuration and deployment via PLCopen blocks. Impact: faster changes between products, easier maintenance, and lower lifecycle costs. Application: OEMs and integrators can deliver configurable solutions without custom coding, while service teams perform quick field updates. Feature: Compact wall-mounted LV AC drive design. Impact: space savings on the shop floor, simpler replacement, and straightforward wiring with motors and sensors. Application: space-constrained automation cells and retrofit projects where minimal footprint matters.
Get a Quick Quote for a ABB 3ABD00048192-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048192-D?
Enquire Now
FAQs
The drive uses PLCopen motion blocks and offers broad motor and PLC connectivity, enabling straightforward integration with standard ABB and third-party PLCs and a wide range of motors. Check motor compatibility, supply voltage, and wiring diagrams, and plan for proper enclosure cooling and protective ratings for reliable long-term operation.
Key specs include 200 kW nominal power and 363 A drive current in the ACS880-01-363A-3+N5700 configuration, with position control enabled by the +N5700 program. It supports PLCopen motion blocks for programmable axes and connects to various fieldbus interfaces, delivering precise, repeatable motion for high-power applications.
Yes. Its 200 kW power rating and 363 A drive current support heavy-axis motion required in material handling and production machinery. The PLCopen-based motion control blocks simplify tuning, while the wall-mounted design helps with space constraints on the shop floor. This makes it ideal for conveyors, automated storage, and robotic cells.
ABB ACS880 drives are built to meet common industry standards, including CE conformity. Depending on enclosure and configuration, IP ratings and safety features are available. Always verify the specific model variant with your ABB distributor for exact certifications, protective ratings, and SIL-relevant options required for your safety integrity level.
Utilizing the 3ABD00048192-D reduces commissioning time through parameter-based setup and PLCopen blocks, improving uptime and throughput. Its modular connections simplify maintenance and spare parts alignment with existing automation, while predictable performance reduces unplanned downtime. Over the lifecycle, these factors translate into lower operating costs and higher equipment availability.
