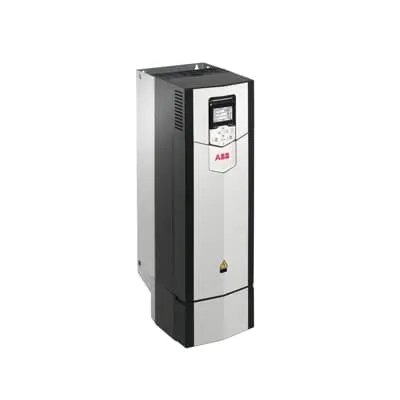

ABB 3ABD00048194-D Drive - Position Control 37 kW
Part Number: 3ABD00048194-D
Quick Summary
ABB ACS880 drive with position control provides precise LV AC motor control for high-power machine axes. Manufacturers often struggle to configure flexible motion profiles and integrate with diverse PLCs and motors. This solution aligns with CE conformity, supports PLCopen motion blocks, and enables safe, IP-rated installations within suitable enclosures. By combining ABB reliability with scalable programming, you can reduce downtime, improve energy efficiency, and shorten commissioning, while maintaining robust compatibility with ABB and third-party components.
Product Information
Extended Description
3ABD00048194-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature → Business Impact → Application: The ACS880 drive configured with the +N5700 position control program delivers precise axis positioning for high-power production lines, reducing cycle times and improving repeatability in material handling. Application: Ideal for automated machinery requiring accurate, programmable motion profiles and reliable axis control. Feature → Business Impact → Application: PLCopen motion control blocks provide standardized, interoperable programming, shortening integration time and easing cross-vendor compatibility. Application: Works across multiple PLC ecosystems and motor families, enabling smoother transitions in multi-brand plants. Feature → Business Impact → Application: A 37 kW, 72 A LV AC drive delivers substantial torque and power headroom, boosting throughput while maintaining energy efficiency. Application: Suitable for heavy-duty positioning tasks in conveyors, gantries, and pick-and-place axes. Feature → Business Impact → Application: Wall-mounted enclosure with straightforward wiring simplifies installation and reduces cabinet space requirements. Application: Fast deployment in limited-space control panels and retrofit projects. Feature → Business Impact → Application: Compatibility with motors and PLCs from ABB and third parties enhances flexibility, lowers supplier lock-in, and protects long-term investment. Application: Useful in mixed-automation environments and evolving production lines. Commentary: These capabilities address common objections about complex configuration by offering PLCopen-standard programming, clear hardware specs, and scalable integration, supported by real-world industry experience in production machinery and material handling contexts.
Get a Quick Quote for a ABB 3ABD00048194-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048194-D?
Enquire Now
FAQs
The drive is designed for wall-mounted LV AC installation, so plan a clean, ventilated panel with adequate clearance for cabling, cooling, and access. Use shielded, correctly rated cables to the motor and PLC, and ensure a compatible enclosure to meet IP expectations. Verify cabinet space for wiring harnesses and easy maintenance access to terminals and disconnects.
Key specs include a 37 kW power rating and 72 A current rating, suitable for high-power positioning tasks. The drive supports a position control program (+N5700) and PLCopen motion control blocks for standardized, scalable motion control, enabling precise axis movement and repeatable performance in production equipment.
Yes. The ACS880 with +N5700 position control is designed for high-power position control axes, offering precise motion profiles, robust interfacing with motors and PLCs, and reliable operation in material handling lines, conveyors, and automated pick-and-place applications when configured with appropriate safety and feedback devices.
This ABB drive typically aligns with CE safety conformity for EU markets and supports industry-standard safety architectures. The exact IP rating depends on the enclosure used, and safety configurations may leverage STO and PLCopen blocks for compliant, safe operation. Always confirm with ABB documentation for your specific enclosure and regional requirements.
ROI comes from reduced downtime, faster commissioning via PLCopen-compatible motion blocks, and improved energy efficiency through optimized motor control. Maintenance benefits include modular diagnostics, straightforward wiring, and compatible spare parts across ABB and third-party motor systems, reducing long-term lifecycle costs and enhancing line availability.
