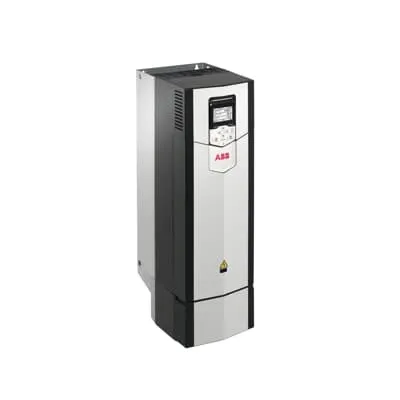

ABB 3ABD00048195-D Motors & Drives - Position Control
Part Number: 3ABD00048195-D
Quick Summary
ABB 3ABD00048195-D is a LV AC industrial wall-mounted drive with position control designed for high-power motion axes in production machinery. This solution addresses the challenge of delivering precise, reliable motion in demanding manufacturing lines where unplanned downtime is costly. The drive leverages the ACS880 platform and the +N5700 position control program, using PLCopen motion control blocks for flexible configuration and repeatable performance. CE-compliant configurations and safety options are available to support regulatory needs, with additional options that align to SIL-ready deployments and robust IP-rated enclosures where applicable. By enabling seamless integration with existing PLCs and motor families, you can accelerate commissioning, improve throughput, and reduce total cost of ownership.
Product Information
Extended Description
3ABD00048195-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: Position control via the +N5700 program is based on PLCopen motion control blocks. Business Impact: Delivers predictable, repeatable motion with flexible parameter-based tuning, reducing commissioning time and risk. Application: high-power position-controlled axes in packaging, material handling, or machine tools. Feature: Connects to all motors and PLCs. Business Impact: Simplifies system integration and enables smooth future upgrades across multi-vendor lines. Application: retrofits and multi-axis automation projects. Feature: 45 kW, 87 A power rating. Business Impact: Supports heavy-load operations with strong torque profiles, enabling faster cycle times and higher throughput. Application: high-power drives in extrusion, molding, or metalworking. Feature: LV AC wall-mounted enclosure. Business Impact: Saves panel space, simplifies installation, and improves serviceability in compact machine rooms. Application: compact OEM installations and retrofit projects. Feature: PLCopen motion control blocks and parameter-based configuration. Business Impact: Accelerates engineering, reduces commissioning risk, and enables scalable motion control across multiple axes. Application: production lines requiring repeatable automation performance.
Get a Quick Quote for a ABB 3ABD00048195-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048195-D?
Enquire Now
FAQs
The drive is designed to connect with a wide range of motors and PLCs, supporting standard interfaces to simplify integration, retrofits, and future expansion across multi-vendor automation environments.
Key specs include 45 kW of output power and 87 A current, LV AC operation, and the ACS880-01-087A-3+D150+N5700 configuration enabling PLCopen motion control blocks for precise position control.
Yes. The 45 kW, high-torque capability combined with the +N5700 position control enables accurate, repeatable motion essential for material handling, stacking, and other high-throughput processes.
Configurations commonly support CE compliance with safety options; confirm your regional regulatory requirements and choose appropriate safety modules or IP-rated enclosures as needed.
Plan for proper mounting surface, ventilation, cable routing, and accessible service points. A wall-mounted configuration saves panel space and simplifies wiring and maintenance in compact machines.
