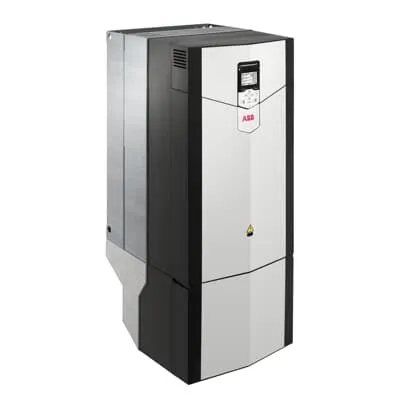

ABB 3ABD00048202-D ACS880 Drive - Position control +N5700
Part Number: 3ABD00048202-D
Quick Summary
ACS880 drive provides precise position control for high-power industrial automation. Engineers often struggle with integrating motion control into production lines while maintaining stability across varying loads and speeds. This ABB solution emphasizes CE conformity and PLCopen-based motion control blocks, aligning with SIL-capable safety configurations and robust enclosure protection to meet demanding environments. With seamless connectivity to motors and PLCs, this drive enables scalable automation, reduces commissioning time, and lowers total cost of ownership through predictable performance and easier upgrades. Real-world deployment translates to higher throughput, lower risk, and improved lifecycle value for material handling and production machinery.
Product Information
Extended Description
3ABD00048202-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: Position control programming with +N5700 leverages PLCopen motion control blocks for flexible, repeatable axis management. Business Impact: Accelerates commissioning, reduces engineering cycles, and improves repeatability across shifts. Application: High-power axes in packaging lines and material handling where precise positioning is critical. Feature: Pn 200 kW, 363 A capability provides power for demanding loads without sacrificing control integrity. Business Impact: Enables reliable operation of heavy conveyors, presses, and robotic axes, boosting throughput while maintaining accuracy. Application: Heavy-duty automation and niche manufacturing tasks requiring robust torque control. Feature: Wall-mounted LV AC drive design simplifies cabinet layouts and reduces footprint. Business Impact: Frees floor space, simplifies maintenance, and supports easier retrofit in existing plants. Application: Retrofit projects in consolidated control rooms or compact automation cabinets. Feature: Easy motor and PLC compatibility with broad connectivity options. Business Impact: Shortens integration time, minimizes debugging effort, and improves long-term maintainability. Application: Plants upgrading legacy lines or expanding automation with existing ABB motors. Feature: Programming flexibility and diagnostic capabilities support predictive maintenance and proactive problem solving. Business Impact: Lowers unplanned downtime and extends asset life through proactive intervention. Application: Continuous manufacturing and continuous material handling operations. Long-tail keywords integrated: ACS880 position control drive, PLCopen motion control blocks, wall-mounted LV drive, high power motor drive, fieldbus connectivity, material handling automation, packaging line drive, production machinery control, PLC integration with ABB motors.
Get a Quick Quote for a ABB 3ABD00048202-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048202-D?
Enquire Now
FAQs
The ACS880 supports PLCopen motion control blocks and parameter-based configuration, enabling straightforward integration with existing PLCs and ABB motors. It connects to standard three-phase power, offers configurable fieldbus options, and simplifies retrofits by maintaining consistent programming interfaces. Verify motor rating matching (Pn 200 kW, 363 A) and review protective enclosure requirements to ensure safe installation.
Key specs include a 200 kW power rating and 363 A current, enabling high-torque control for demanding axes. Position control via +N5700 supports precise motion profiles, while PLCopen blocks streamline complex sequencing. In practice, this translates to tighter tolerances, faster cycle times, and reliable axis synchronization in conveyors, presses, and automated pick-and-place systems.
Yes. The 200 kW, 363 A ACS880 drive equipped with position control is well-suited for high-power material handling and packaging applications. Its programmable motion control, robust connectivity, and compact wall-mounted form factor make it ideal for axes that require precise positioning, repeatable operations, and easy integration with existing plant control architectures.
Key considerations include CE conformity for European markets and the availability of SIL-capable safety configurations if your risk assessment requires functional safety. Additionally, evaluate enclosure protection and environmental ratings to meet plant conditions. Confirm any regional or sector-specific standards your installation must meet and ensure the drive is configured accordingly.
The ACS880 drive offers robust diagnostics, remote monitoring options, and scalable control that reduce unexpected downtime. ROI is driven by improved throughput, lower commissioning time, and extended asset life through predictive maintenance insights. In retrofit projects, faster integration and simplified upgrades further enhance total cost of ownership.
