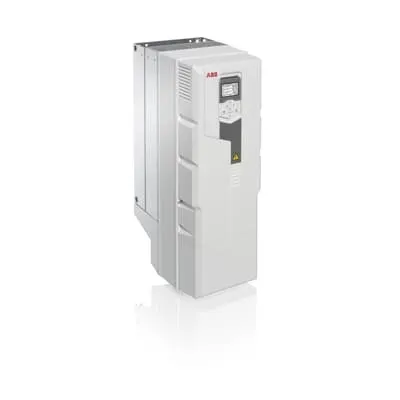

ABB ACS580-01-145A-4+P974 Drive - Wall-Mounted IP21
Part Number: 3ABD00048317-D
Quick Summary
ABB ACS580-01-145A-4+P974 is a wall-mounted LV AC drive for precise motor control in compressors and pumps. Many engineers face long commissioning times and compatibility headaches, which this drive helps solve through plug-in readiness and a straightforward settings menu. It ships with an IP21 enclosure by default, with IP55 and flange-mount options for tougher conditions and safer installations. CE-compliant and built to reduce hardware, it delivers faster return on investment by enabling smooth control and predictable performance in food & beverage, plastics, and material-handling lines, while supporting energy-efficient operation and easy maintenance.
Product Information
Extended Description
3ABD00048317-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature: Plug-in readiness and built-in essentials reduce the need for extra hardware and simplify commissioning. Benefit: Shorter installation cycles and lower upfront costs, enabling faster project kickoffs for pumps, fans, and conveyors. Application: Light-industrial lines in food & beverage, plastics, and agriculture. Feature: Intuitive settings menu and assistants streamline configuration. Benefit: Faster tuning, fewer setup errors, and consistent motor performance across varying loads. Application: Extruders and centrifuges where process stability matters. Feature: Robust enclosure options with IP21 standard and IP55 flange-mount variants. Benefit: Adaptable protection for different environments, reducing enclosure-related failures and enabling safer maintenance. Application: Material handling and packaging lines with exposure to dust and moisture. Feature: Integrated protection and diagnostics. Benefit: Early fault detection lowers downtime and simplifies maintenance planning. Application: Any automated line where reliability is critical, from fans to pumps. Feature: Compact wall-mount form factor with 75 kW (Pn) and 145 A rating. Benefit: Space savings and compatibility with compact control cabinets, lowering installation footprint. Application: Industrial plants with space constraints and modular drive architecture. Feature: End-to-end compatibility with ABB ACS580 family and standard motor control practices. Benefit: Consistent development and spare parts availability, reducing lifecycle cost. Application: Comprehensive plant modernization projects and new line builds.
Get a Quick Quote for a ABB 3ABD00048317-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048317-D?
Enquire Now
FAQs
Yes. The ACS580-01-145A-4+P974 is designed for three-phase low-voltage power with IEC-motor compatibility within its 75 kW, 145 A rating. It comes plug-in ready, reducing external hardware needs, and supports compatible ABB motors and typical 3-phase feeds found in light-industrial plants. For non-standard voltages or unique motor configurations, verify voltage, motor data, and wiring per the installation guidelines to ensure safe and optimal operation.
The drive provides precise speed control for general purpose motors up to 75 kW with a rated current of 145 A. It includes built-in overcurrent/overload protection, fault diagnostics, and safe torque off features to protect both machinery and operators. With variable speed control, you can optimize motor torque across loads, delivering smoother starts, reduced mechanical stress, and energy-efficient operation across pumps, conveyors, and fans.
Industries such as food & beverage, plastics, textiles, material handling, and agriculture benefit most due to the drive’s plug-and-play setup, robust enclosure options, and reliable torque control. Typical applications include compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans where consistent motor performance, protection against dust and moisture, and quick commissioning are valuable for uptime and productivity.
The ACS580-01-145A-4+P974 offers CE compliance as a standard for safety and performance. It ships with an IP21 enclosure by default, with optional IP55 configurations and flange-mount variants to meet harsher environments and space-constrained installations. These options support regulatory and safety requirements across typical industrial settings, enabling safe operation in varied plant conditions.
By reducing wiring complexity, speeding up commissioning, and providing built-in diagnostics, the ACS580 drive lowers initial installation costs and downtime. Its robust protection and maintenance-friendly design shorten repair times, while energy-efficient motor control contributes to ongoing savings. Over the life of the equipment, users typically see faster payback through reduced maintenance, fewer spare parts, and improved process reliability.
