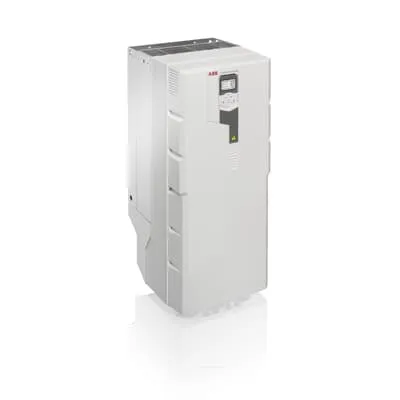

ABB 3ABD00048417-D ACS580-01 Wall-Mounted Drive - IP21
Part Number: 3ABD00048417-D
Quick Summary
The ACS580-01 wall-mounted drive is a plug-in ready motor control solution for light-industrial equipment. It delivers precise motor control for a range of applications including compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans. Engineers often confront lengthy commissioning, confusing wiring, and integration headaches; this drive reduces setup time and minimizes hardware overhead. The unit ships with IP21 protection as standard, while IP55 and flange mounting options provide flexibility for harsher environments and varied panel layouts. Built-in features support faster project turnarounds, lower maintenance costs, and reliable performance across food and beverage, plastics, textiles, material handling, and agriculture sectors. For OEMs and integrators, the ACS580-01 offers robust ABB automation compatibility and scalable potential in a growing automation landscape.
Product Information
Extended Description
3ABD00048417-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature: The ACS580-01 is plug-in ready with built-in essentials that simplify drive selection for LV AC systems. Business impact: Reduces hardware dependencies, shortens procurement cycles, and accelerates commissioning across light-industrial lines. Application: Ideal for compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans in food & beverage, plastics, textiles, and agriculture environments. Feature: Intuitive settings menu and guided assistants enable fast configuration and troubleshooting. Business impact: Lowers on-site engineering hours, speeds first-pass tuning, and ensures consistent operation across shifts. Application: Suited for variable torque and constant torque loads in packaging, material handling, and processing lines. Feature: Rugged wall-mounted enclosure with IP21 protection; IP55 and flange mounting variants offer installation flexibility. Business impact: Easier retrofits, enhanced dust/moisture resilience, and smoother integration with existing control architectures. Application: Fits OEMs and panel builders pursuing compact automation footprints in conveyors, fans, and pumps. Feature: High power rating of Pn 200 kW and 363 A current capacity delivers strong torque control and smooth starts. Business impact: Improves energy efficiency, reduces motor wear, and lowers total cost of ownership through fewer spare parts and longer maintenance cycles. Application: Well-suited for compressors, pumps, fans, and conveyors in light-industrial equipment and packaging lines.
Get a Quick Quote for a ABB 3ABD00048417-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048417-D?
Enquire Now
FAQs
The ACS580-01 is designed for plug-in installation in standard LV AC control panels and supports direct connection to ABB motors as well as many third-party motors that are compatible with common VFD wiring practices. Its built-in control algorithms and parameter assistants simplify motor tuning, while the plug-in design minimizes wiring complexity. For panel builders, the slim footprint and standardized terminal layout reduce enclosure depth and streamline commissioning across conveyors, pumps, and fans.
Key performance specs include a power rating of 200 kW and a current rating of 363 A, with an IP21 enclosure standard and IP55/flange options for tougher environments. The ACS580-01 supports variable torque (pumps, fans) and constant torque loads (extruders, conveyors) typical of light-industrial automation. Its integrated control features enable smooth start-up, precise speed control, and efficient energy usage across mixed-load applications.
Yes. The ACS580-01 is well-suited for food & beverage processing lines, conveyors, pumps, and related equipment thanks to its plug-in readiness, built-in setup tools, and robust IP21 protection. Its 200 kW rating accommodates sizeable pumps and conveyors, while IP55 and flange mounting options expand installation flexibility in hygienic or compact plant environments where space and reliability are critical.
The device ships with IP21 protection as standard, ensuring reliable operation in typical indoor environments. For harsher conditions, IP55 and flange mounting options are available, providing additional dust and moisture resilience and installation flexibility. These enclosure choices help meet common industrial compliance demands for panel integration and equipment protection in light-industrial applications.
Expect reduced maintenance needs due to built-in features that lower hardware count and simplify diagnostics. The plug-in ready design shortens commissioning time, reducing on-site labor costs. Energy-efficient operation and smoother motor starts contribute to extended motor life and lower total cost of ownership, with faster project ramp-up and scalable integration within ABB's ACS580 ecosystem.
