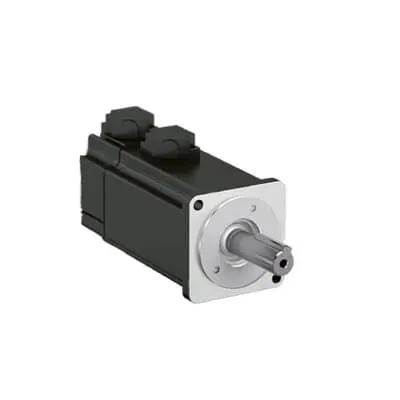

ABB 3ABD00048469 Servo Motor - 0.1 kW, 220 V, Encoder
Part Number: 3ABD00048469
Quick Summary
ABB 3ABD00048469 servo motor is a precision LV AC servo motor for high-accuracy positioning in automation. Engineers often struggle with long set-up cycles and inconsistent positioning without reliable encoders. Typical certifications for motion systems include CE compliance for Europe, IP protection for harsh environments, and SIL-safety considerations. With built-in encoder options and seamless drive integration, this motor helps reduce downtime and improve productivity, complementing MotiFlex e180 and MicroFlex e190 ecosystems. The motor's high torque density and low-maintenance design deliver consistent performance across shift schedules and tough manufacturing environments. By pairing with MotiFlex e180 and MicroFlex e190 drives, you gain a scalable, cost-efficient automation solution that reduces total cost of ownership.
Product Information
Extended Description
3ABD00048469 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
Feature: High torque density in a compact LV AC servo motor. Business Impact: This design delivers more output from smaller envelopes, enabling tighter machine layouts, reduced heat load in electromechanical systems, and a smaller overall footprint that saves enclosure space. Application: Ideal for pick-and-place in packaging, precision robotics, and compact CNC modules where space constraints challenge traditional servo solutions. Feature: Absolute encoder option reduces homing cycles. Business Impact: Absolute position feedback eliminates lengthy homing routines, accelerating machine start-up, improving line uptime, and minimizing operator intervention. Application: Robotics, assembly lines, and precision equipment where rapid, repeatable positioning is essential. Feature: Seamless drive integration with MotiFlex e180 and MicroFlex e190. Business Impact: Tight parameter synchronization and improved reliability reduce debugging time, commissioning risk, and the need for rework after changes in payload or tooling. Application: OEM automation cells and modular production lines seeking streamlined control architectures that scale with demand. Feature: Low maintenance and energy-efficient design. Business Impact: Fewer maintenance intervals lower lifecycle costs, while energy efficiency lowers operating expenses across shifts, especially in continuous production. Application: Long-duty-cycle environments demanding long-term stability and predictable thermal behavior in motor drive trains. Feature: Accurate encoding for precise control. Business Impact: Improved position accuracy reduces scrap, rework, and process variation, enabling tighter tolerances in printing, packaging, and electronics assembly. Application: Industries requiring repeatable motion with minimal drift, such as labeling, inline inspection, and thin-film processing.
Get a Quick Quote for a ABB 3ABD00048469
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048469?
Enquire Now
FAQs
The ABB 3ABD00048469 is a 0.1 kW LV AC servo motor designed for use with ABB drives like MotiFlex e180. Mount the motor, connect a 220 V supply, and wire the encoder feedback if using the encoder option. Ensure the feedback path aligns with the drive’s resolver/encoder input and configure motor parameters to match the load profile for stable, repeatable positioning.
Key benefits include high torque density for compact packages, quick dynamic response for fast cycling, low maintenance due to robust design, and energy efficiency that reduces running costs. The encoder option provides precise position information, enabling accurate control and reduced setup time when integrated with compatible ABB drives.
Yes. Its 0.1 kW rating and 0.32 N·m torque, combined with high torque density and fast response, suit packaging lines, robotic cells, and compact CNC modules. When used with MotiFlex e180 or MicroFlex e190, it enables reliable, repeatable motion essential for high-throughput automation and quality-critical tasks.
Verify CE compliance for EU safety and EMC, confirm IP ratings based on enclosure and environment, and consider SIL-related safety integration in the motion control system. Certification specifics can vary by variant and country, so confirm with the supplier and your systems integrator during specification.
The motor’s low-maintenance design, combined with energy efficiency and precise encoder feedback, reduces downtime and energy costs over the life of the system. ROI improves with faster commissioning, less manual homing, and reliable performance when paired with MotiFlex e180 and MicroFlex e190 drives.
