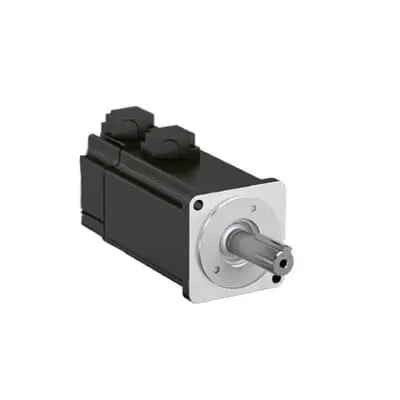

ABB 3ABD00048473 Motors & Drives - 0.32 N·m Torque
Part Number: 3ABD00048473
Quick Summary
ABB 3ABD00048473 servo motor is a high-precision LV AC servo solution for automated manufacturing lines. Engineers frequently contend with long commissioning times and inconsistent motion that reduce throughput; this motor addresses those pains with an absolute encoder option that eliminates homing cycles and speeds up commissioning. The design aligns with common industry certifications, such as CE conformity and built-in safety considerations, and it integrates seamlessly with ABB's MotiFlex e180 and MicroFlex e190 servo drives to elevate system reliability and efficiency. In practice, this translates to improved uptime, tighter quality control, and lower energy consumption, while enabling scalable motion control and easier PLC integration for modern production environments.
Product Information
Extended Description
3ABD00048473 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
Feature: High torque density and rapid dynamic response → Business Impact: Faster acceleration and higher throughput reduce cycle times and boost overall equipment effectiveness in automation lines. Application: Packaging, pick-and-place, and robotic assistors benefit from snappy positioning without sacrificing precision. Feature: Absolute encoder option → Business Impact: Eliminates homing cycles, shortens machine setup, and improves repeatability in high-mix production. Application: Multi-variant assembly and toolchanging stations gain faster line readiness and less downtime. Feature: Reliable, low-maintenance design → Business Impact: Lower maintenance costs and extended mean time between failures (MTBF) improve uptime and total cost of ownership. Application: Continuous-duty manufacturing cells in automotive and electronics manufacturing rely on consistent performance. Feature: Drives ecosystem compatibility (MotiFlex e180, MicroFlex e190) → Business Impact: Simplified integration, unified diagnostics, and reduced engineering time. Application: OEMs implementing end-to-end ABB motion control benefit from streamlined commissioning and support. Feature: Energy-efficient operation → Business Impact: Reduced energy consumption translates to lower operating costs and greener production. Application: High-speed conveyor and servo-controlled axes benefit from improved energy profiling and heat management. Feature: Various flange sizes and mechanical variants → Business Impact: Easier fit across different machines and retrofits, minimizing rework and spare-part complexity. Application: OEMs can reuse common components across platforms, accelerating time-to-market.
Get a Quick Quote for a ABB 3ABD00048473
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048473?
Enquire Now
FAQs
Plan a proper motor-to-drive pairing and mount the servo with correct flange alignment. Use shielded, properly routed encoder cables and a clean 220 V power supply within documented voltage tolerances. Follow ABB wiring diagrams for signal, feedback, and earth connections, and verify safe torque and emergency-stop integration to minimize commissioning risk.
The absolute encoder eliminates homing cycles, enabling immediate position reference at power-up and reducing commissioning time. This improves repeatability and precision across production runs, especially in multi-variant or high-mix environments where quick changeovers are frequent and accuracy is mission-critical.
Yes, with its high torque density and rapid dynamic response, the eSM servo motor supports fast acceleration and accurate positioning required in packaging lines. Its compatibility with ABB drives allows synchronized control across axes, improving throughput while maintaining tight tolerances and reducing cycle time.
Consider industry-standard CE conformity and applicable safety guidelines as part of your risk assessment. For regulated environments, verify with the product sheet or ABB regional documentation to confirm any required IP ratings or SIL-related features and ensure machine-level compliance within your end-use market.
Expect improved uptime due to a low-maintenance design and higher reliability, along with reduced downtime from faster commissioning using the absolute encoder. Energy-efficient operation lowers running costs, and compatibility with ABB drives simplifies diagnostics and spare-parts planning, delivering a favorable total cost of ownership over the motor’s life cycle.
