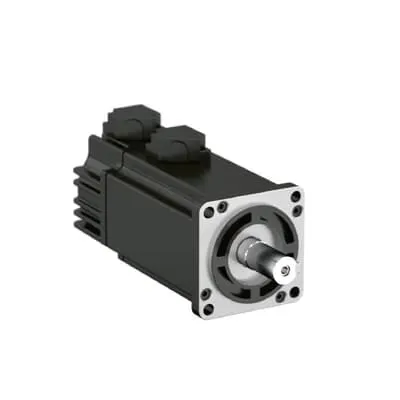

ABB 3ABD00048474 Servo Motor - Absolute Encoder
Part Number: 3ABD00048474
Quick Summary
ABB 3ABD00048474 servo motor delivers precise motion control for automated packaging and machine tending applications. Manufacturers often struggle with lengthy setup times and inconsistent performance during shift changes. Typical servo motors in this class support CE safety compliance, IP-rated protection, and SIL-ready safety interfaces to help meet regulatory and safety requirements. By combining high torque density with an absolute encoder option, this motor reduces homing cycles and startup delays. When used with ABB’s MotiFlex e180 or MicroFlex e190 drives, it delivers reliable, energy-efficient operation that translates into higher throughput and lower total cost of ownership. The design also facilitates quick commissioning and predictable behavior across varying loads, empowering engineers to optimize processes and meet tight production deadlines.
Product Information
Extended Description
3ABD00048474 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
Feature: High torque density in a 0.2 kW LV AC servo motor delivers strong performance in a compact package. Business impact: Higher torque density reduces machine footprint and enables faster dynamic response, boosting line throughput. Application: Ideal for small-footprint packaging machines, precision conveyors, and compact CNC axes that demand quick starts and accurate stops. Feature: Absolute encoder option enables precise positioning without homing cycles. Business impact: Significantly reduces machine setup time and improves first-pass yield. Application: Robotics, pick-and-place, and multi-axis automation where repeatable positioning is critical. Feature: Compatibility with MotiFlex e180 and MicroFlex e190 servo drives. Business impact: Simplifies integration, minimizes wiring hassle, and improves system reliability through coordinated control. Application: Fits ABB control ecosystems and legacy installations needing seamless drive communication. Feature: Energy-efficient design and low maintenance. Business impact: Lowers operating costs through reduced energy consumption and reduced maintenance downtime. Application: High-duty cycle manufacturing cells, automotive assembly, and process lines where uptime matters. Feature: Robust encoder feedback for smooth velocity control and precise torque management. Business impact: Enhances control quality, reduces overshoot, and extends motor life under demanding cycles. Application: High-precision machining, downstream positioning, and safety-critical motion tasks.
Get a Quick Quote for a ABB 3ABD00048474
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048474?
Enquire Now
FAQs
The 3ABD00048474 is designed to integrate with ABB MotiFlex e180 drives, using standard LV AC 220 V wiring and encoder feedback for reliable control. Confirm wiring, encoder configuration, and safe operating limits in the installation manual to ensure smooth commissioning and predictable performance on start-up.
Core specs include a nominal power of 0.2 kW, holding torque of 0.64 N·m, and a supply voltage of 220 V. The model also offers an absolute encoder option for precise positioning, enabling faster homing-less startup and tighter control in high-precision applications.
Yes. With its high torque density, fast dynamic response, and optional absolute encoder, the 3ABD00048474 excels in robotics, pick-and-place, and multi-axis automation. Its compatibility with ABB drives ensures coordinated control, repeatable positioning, and reduced cycle times for high-throughput assembly environments.
Verify CE safety compliance and IP-rated enclosure suitability for your environment, and confirm SIL-related safety interfaces if your application requires safety-integrated controls. Always consult the official datasheet or ABB regional documentation to confirm specific certifications for this model in your region.
The 3ABD00048474 offers low maintenance due to its robust, energy-efficient design and reliable encoder feedback. ROI comes from reduced downtime, faster setup with absolute encoding, and improved throughput when paired with compatible ABB drives. Benefits compound over the life of high-duty-cycle manufacturing lines and repetitive positioning tasks.
