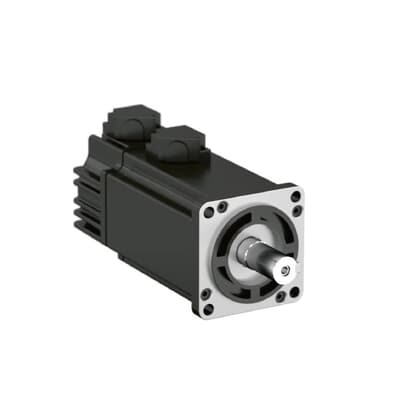

ABB 3ABD00048475 LV AC Servo Motor - Absolute Encoder
Part Number: 3ABD00048475
Quick Summary
The ABB 3ABD00048475 LV AC servo motor delivers precise motion control for automated machinery. Many engineers struggle with lengthy set-up times and unplanned downtime due to homing and calibration needs. The encoder feedback delivers repeatable positioning and fast dynamic response, supporting higher throughput and tighter process control. It integrates with MotiFlex e180 and MicroFlex e190 drives, enabling reliable operation in energy-efficient, low-maintenance systems. This combination supports high-mix production, reduces changeover time, and improves first-pass yield across assembly and packaging applications. These features help reduce scrap and rework by delivering consistent performance across shifts. For procurement teams, the combination of reliability and clear integration paths minimizes risk and accelerates ROI.
Product Information
Extended Description
3ABD00048475 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
Feature → Business Impact → Application: The motor exhibits high torque density and fast dynamic response, enabling tighter control and quicker cycle times. This translates to increased throughput on packaging lines and CNC tooling, with energy-efficient operation reducing running costs. Application: In automated assembly, where speed and precision matter, this capability supports higher line productivity without increasing power consumption. Feature → Business Impact → Application: An absolute encoder allows zero homing cycles, dramatically cutting machine set-up time and enabling rapid changeovers. Application: High-mix, low-volume manufacturing environments where setup time dominates downtime. Feature → Business Impact → Application: Low maintenance requirements and robust design lower maintenance costs and maximize uptime. Application: Continuous operation in harsh production environments, minimizing unscheduled service calls. Feature → Business Impact → Application: Seamless integration with MotiFlex e180 and MicroFlex e190 drives simplifies commissioning and improves reliability. Application: Modernizing existing automation stacks to achieve predictable performance and straightforward diagnostics. Feature → Business Impact → Application: 0.4 kW nominal power at 220 V supports compact footprints and simplified wiring. Application: Space-constrained automation cells and small-format machines, with reduced cabinet size and wiring complexity. Feature → Business Impact → Application: Precise torque control and repeatability enhance first-pass yields in assembly and robotics tasks. Application: High-precision pick-and-place and material handling where consistency matters.
Get a Quick Quote for a ABB 3ABD00048475
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048475?
Enquire Now
FAQs
This LV AC servo motor is designed for compatibility with ABB's servo drive ecosystem, including MotiFlex e180 and MicroFlex e190. It uses standard flange configurations common to ABB eSM motors, enabling straightforward mounting on existing machines while preserving alignment accuracy and cable routing. When selecting a flange, verify the motor’s flange size and encoder type to ensure seamless integration with your drive stack and control system.
Key specs include a nominal power of 0.4 kW and a torque of 1.27 N·m at 220 V. To optimize performance, pair the motor with a compatible servo drive (MotiFlex e180 or MicroFlex e190) to utilize field-oriented control and torque rastering. Fine-tune current limits, acceleration, and jerk settings according to machine dynamics, and leverage the absolute encoder to reduce homing time for quicker commissioning.
Yes. The high torque density and fast dynamic response are well-suited for packaging lines, robotic cells, and CNC tooling where repeatable positioning and tight speed control are essential. The absolute encoder minimizes setup time, while the compact 0.4 kW rating supports space-constrained layouts, delivering reliable performance in small- to mid-scale automation cells.
The eSM family is designed to support industry-standard safety and compliance expectations, including CE-oriented conformity for European markets and robust protection for industrial environments. For project-specific certifications (SIL, IP ratings), confirm with ABB or your distributor based on your application, location, and operating conditions to ensure full regulatory alignment.
The absolute encoder eliminates homing cycles, reducing machine set-up time and startup delays. This translates to higher line uptime and faster time-to-rate for production. Combined with low maintenance requirements and energy-efficient operation, the motor lowers maintenance costs and improves return on investment, especially in high-cycle manufacturing and applications demanding rapid changeovers.
