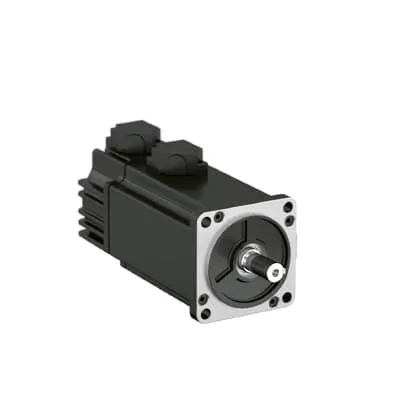

ABB 3ABD00048477 LV AC servo motor - Absolute Encoder
Part Number: 3ABD00048477
Quick Summary
ABB 3ABD00048477 LV AC servo motor delivers precise motion control for automated equipment and packaging lines. This motor helps reduce cycle times and improve part quality with consistent torque and rapid dynamic response. A common challenge is lengthy machine setup and homing cycles; the absolute encoder option can eliminate these bottlenecks and shorten commissioning. The design supports CE compliance for European markets, and when integrated with safe-motion strategies it aligns with SIL-rated safety requirements. Robust housing and standard ABB drive compatibility support reliable operation in harsh industrial environments. Paired with MotiFlex e180 or MicroFlex e190 drives, it delivers improved reliability, energy efficiency, and simplified maintenance, driving productivity and lower total cost of ownership.
Product Information
Extended Description
3ABD00048477 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
High torque density results in a compact, lightweight package with quick dynamic response, reducing machine footprint while delivering faster accelerations and improved line throughput for packaging and automated assembly. This enables higher productivity and shorter cycle times in pick-and-place stations and CNC modules where space and speed are critical. The eSM motor design emphasizes reliability and low maintenance, delivering stable performance across demanding workloads to lower maintenance costs and minimize unscheduled downtime. Energy-efficient architecture reduces heat generation and power draw, contributing to lower energy use per unit produced and simpler cooling requirements in control cabinets. The optional absolute encoder eliminates homing cycles, accelerating commissioning and startup in multi-axis systems, improving line changeovers and reducing downtime. Seamless compatibility with MotiFlex e180 and MicroFlex e190 drives simplifies wiring, diagnostics, and service, while multiple flange sizes support flexible integration and reduce retrofit costs. In industrial environments, this combination supports consistent quality, predictable performance, and a favorable total cost of ownership for automation projects.
Get a Quick Quote for a ABB 3ABD00048477
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048477?
Enquire Now
FAQs
To install, mount the motor using the appropriate flange, align the shaft with the driven load, and connect the power and encoder cables to the MotiFlex e180. Ensure correct wiring per ABB installation guides, configure the motor parameters in the drive, and verify encoder feedback. Use proper safety procedures and run a test move to confirm smooth startup and accurate positioning.
Key specs include nominal power of 0.75 kW, torque around 2.39 N·m, and operating voltage of 220 V. The ESM08B-751-302-T2N1A00 model supports precise position feedback, with optional absolute encoder to eliminate homing cycles. When paired with ABB drives, expect reliable dynamic response suitable for high-speed packaging and precision positioning tasks.
Yes, the 0.75 kW LV AC servo motor delivers strong torque density and fast dynamic response, which are essential for high-speed packaging. Its compatibility with MotiFlex e180/e190 drives enables synchronized multi-axis motion, tight control loops, and quick changeovers, contributing to higher throughput and improved product quality in repetitive packaging tasks.
The motor is designed to support CE compliance for European use and integrates with safe-motion strategies through ABB drives, aiding SIL-relevant safety workflows. While an IP rating may be specified for housing protection in particular configurations, always confirm the final installation’s environmental protection level with the system integrator.
The absolute encoder eliminates homing cycles, reducing machine commissioning and startup time—this translates to shorter downtime during line changes and faster time-to-volume. When paired with efficient ABB drives and a robust maintenance plan, the motor contributes to higher uptime, lower energy costs, and a favorable return on automation investments over the equipment’s life cycle.
