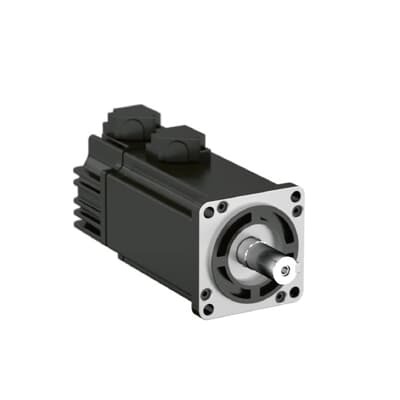

ABB 3ABD00048478 Servo Motor - Absolute Encoder
Part Number: 3ABD00048478
Quick Summary
The 3ABD00048478 ABB servo motor delivers precise velocity and torque control for high-demand automation applications. Engineers often face long machine setup times and unpredictable performance in servo runs. This design aligns with common industry standards such as CE compliance, safety-integrated SIL configurations, and robust IP-rated protection. Integrated with MotiFlex e180 and MicroFlex e190 smoothly, the motor delivers improved uptime and productivity for automated manufacturing.
Product Information
Extended Description
3ABD00048478 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
Feature → Business Impact → Application: The eSM LV AC servo motor combines high torque density with quick dynamic response, enabling faster cycle times and tighter motion control for packaging lines, robotics, and CNC operations. This directly improves throughput and product quality while reducing cycle loss and energy consumption. Feature → Business Impact → Application: The encoder provides precise position information, and an absolute encoder option eliminates homing cycles, cutting setup times and shortening start-up in new job runs. This is critical for small-batch production and high-mix environments where uptime drives throughput. Feature → Business Impact → Application: When paired with MotiFlex e180 and MicroFlex e190 drives, system reliability improves through coherent control of motion profiles, ease of integration, and reduced wiring complexity. This supports scalable automation architectures in automotive, plastics, and food-and-beverage lines. Feature → Business Impact → Application: The motor’s energy-efficient design and low-maintenance construction lower operating costs over the life of the machine, decreasing total cost of ownership in continuous manufacturing environments. Feature → Business Impact → Application: Industry-leading feedback accuracy and robust construction address common objections about upgrade risk, with straightforward installation and proven compatibility across ABB servo solutions, enabling faster ROI in high-precision applications.
Get a Quick Quote for a ABB 3ABD00048478
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048478?
Enquire Now
FAQs
Installation involves mounting the motor on the supported flange, wiring the 220 V power supply with proper grounding, and connecting the encoder feedback to the drive. Parameterize motor constants in the MotiFlex e180, select the absolute encoder option if zero homing is required, and verify torque limits before commissioning to ensure smooth operation.
The motor provides 0.2 kW nominal power with a nominal torque of 0.64 Nm and operates at 220 V. It features high torque density and quick dynamic response, with encoder feedback for precise positioning. It is designed for seamless compatibility with ABB drives like MotiFlex e180 and MicroFlex e190.
Yes. Its high torque density, fast dynamic response, and precise feedback enable reliable motion control on packaging lines. The option for an absolute encoder reduces downtime by eliminating homing cycles, while compatibility with ABB drives supports compact, integrated control architectures ideal for high-speed production environments.
ABB servo motors are designed to meet common automation standards. Expect CE compliance for European installations, and when integrated with safety-rated ABB drives, SIL safety configurations are supported. IP protection levels depend on enclosure and installation, so verify with the specific setup and environment requirements.
The combination offers reduced downtime due to precise encoder feedback and the option of absolute encoding, which minimizes setup time. Energy-efficient operation lowers running costs, while low maintenance design and reliable ABB drive integration shorten maintenance intervals and enhance overall equipment effectiveness (OEE).
