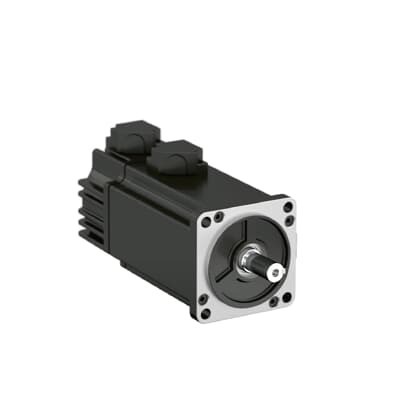

ABB 3ABD00048480 LV AC Servo Motor - Absolute Encoder
Part Number: 3ABD00048480
Quick Summary
ABB 3ABD00048480 LV AC servo motor delivers precise motion control for automated manufacturing and packaging lines. It offers fast dynamic response to meet tight cycle times and high-precision placement needs. A common challenge is long setup and homing cycles, which this motor helps reduce with its absolute encoder option, accelerating machine start-up. While the datasheet notes Pn 0.75 kW and 220 V operation, the design emphasizes reliability and low maintenance for demanding environments. When paired with MotiFlex e180 or MicroFlex e190 drives, wiring and control become straightforward, improving overall system uptime and efficiency. This combination supports scalable automation projects and better return on investment through consistent performance.
Product Information
Extended Description
3ABD00048480 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
High torque density and fast dynamic response reduce cycle times and improve precision in pick-and-place, packaging, and CNC tasks. In practice this means tighter tolerances with less motor heat while maintaining a compact footprint across multiple flange sizes. Absolute encoder feedback eliminates homing cycles, shrinking machine start-up times and reducing setup labor. For line changes or frequent restarts, this capability translates to measurable throughput gains and less operator intervention. Designed to pair seamlessly with MotiFlex e180 and MicroFlex e190 servo drives, this motor simplifies installation with compatible wiring schemes and integrated control options. The combined system supports streamlined commissioning, real-time performance monitoring, and easier service planning. Energy-efficient design and robust construction deliver lower running costs and reduced maintenance needs. A reliable, low-maintenance solution helps minimize unscheduled downtime and extends service intervals in harsh industrial environments. Flange-size versatility and encoder options enable precise motor matching for varied automation tasks, from small to large-capacity machines. This makes it a strong fit for industrial automation, robotics integrations, and motion control systems seeking scalable, cost-conscious performance. Some teams worry about integration complexity; with ABB engineering support and familiar ABB interfaces, commissioning aligns with standard PLC and drive ecosystems, reducing risk.
Get a Quick Quote for a ABB 3ABD00048480
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048480?
Enquire Now
FAQs
To install, verify the servo motor mounting is compatible with your flange size and mechanical interface. Connect power and encoder wiring per the drive’s installation guide, then configure the e180 or e190 drive for torque and velocity limits. Use the absolute encoder option if available to shorten startup and eliminate homing cycles. Ensure proper cable routing and shielding to minimize EMI, and perform a basic run-in test on an aligned axis.
The 3ABD00048480 is a 0.75 kW LV AC servo motor with a rated torque of 2.39 N·m and 220 V operation. This combination delivers high torque density for compact packages, enabling fast dynamic response essential for high-speed positioning and accurate repeatability in automated tasks.
Ideal for automated assembly, packaging lines, CNC machines, and pick-and-place systems, the 3ABD00048480 suits environments requiring precise motion, tight tolerances, and reliable uptime. Its compact form with high torque density supports scalable automation projects, robotics integrations, and other motion control applications where energy efficiency and quick setup are priorities.
Certification details are not listed in the provided data. For regulatory and safety considerations, consult ABB’s official datasheet or contact ABB support to confirm CE, SIL, IP ratings, and any country-specific certifications applicable to your installation and industry requirements.
The motor’s low-maintenance design and energy-efficient operation reduce running costs and spare-part usage. Additionally, the optional absolute encoder minimizes setup time and downtime due to homing. When paired with compatible drives, these features translate to higher uptime, shorter development cycles, and a faster return on investment in scalable automation projects.
