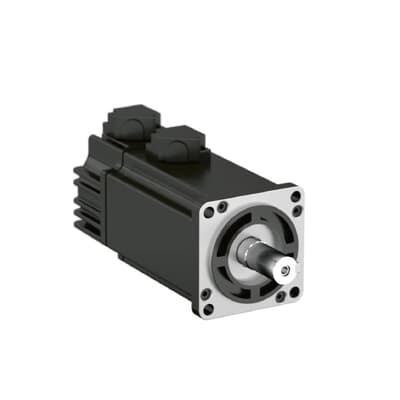

ABB 3ABD00048481 LV AC servo motor - 0.2 kW, IEC
Part Number: 3ABD00048481
Quick Summary
The ABB 3ABD00048481 LV AC servo motor delivers high-torque, precise motion control for automated manufacturing and packaging lines. Engineers often battle lengthy machine setup and inconsistent positioning, leading to reduced productivity and waste. This motor addresses those challenges through fast dynamic response, compact form factors, and integrated encoder feedback. While exact certifications vary by region, ABB solutions commonly target CE compliance, SIL safety considerations, and IP-rated options for rugged environments. When paired with MotiFlex e180 or MicroFlex e190 drives, it unlocks improved system reliability, energy efficiency, and streamlined commissioning. In short, you get higher throughput, better quality, and lower total cost of ownership across your automation cell.
Product Information
Extended Description
3ABD00048481 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
The eSM servo motor is designed with high torque density and rapid dynamic response, enabling smaller drive trains and faster cycle times. Business impact includes reduced inertia and increased throughput without sacrificing precision, allowing packaging lines, robotics tasks, and high-speed pick-and-place to run at higher outputs. In practice, engineers can retool existing cells for greater output without reengineering drive electronics. The integrated encoder provides reliable position feedback, delivering tighter tolerance control and easier tuning during commissioning, which translates to fewer quality excursions on end-of-line tests. Absolute encoding also supports faster machine start-up and reduced homing requirements, cutting diagnostic time and operator intervention in automated workflows.
Get a Quick Quote for a ABB 3ABD00048481
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048481?
Enquire Now
FAQs
Begin by confirming flange compatibility and supply voltage (220 V). Wire the motor according to the terminal layout, mount it on the correct flange, and perform initial tuning in the drive software. Enable encoder feedback to establish the zero position and verify smooth, backlash-free motion during test runs. Use the drive's auto-tuning to optimize velocity and torque profiles for your application.
The motor delivers 0.2 kW continuous power at 220 V with a nominal torque of 0.64 N·m. It utilizes an integrated encoder for precise position feedback, enabling accurate and repeatable motion. Designed for rapid dynamic response, it pairs with ABB drives to maximize efficiency and achieve tight control loops across automated processes.
Yes. Its high torque density and fast acceleration support high-speed packaging, robotics, and automated material handling. The encoder feedback ensures precise positioning essential for pick-and-place and assembly tasks, while the compact form factor helps reduce machine footprint without compromising performance. When paired with the appropriate drives, you can achieve shorter cycle times and tighter process tolerances.
The eSM motor emphasizes low maintenance through robust, energy-efficient design and reliable components. The integrated encoder reduces tune and downtime; energy efficiency lowers operating costs, and the ABB motor family’s durability minimizes spare parts and service intervals. Overall, you can expect improved uptime, predictable maintenance planning, and a lower total cost of ownership in production environments.
The absolute encoder provides definitive position information, eliminating or greatly reducing homing cycles. This means faster machine start-up, quicker alignment after power cycles, and repeatable positioning across cycles. When used with the MotiFlex e180 or MicroFlex e190, encoder data enables precise trajectory control, smoother ramps, and consistent cycle times in demanding automation tasks.
