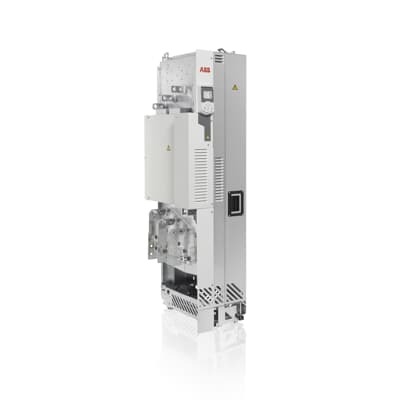

ABB 3ABD00048522-D Drive Module - ACS580-04 585A
Part Number: 3ABD00048522-D
Quick Summary
ABB 3ABD00048522-D drive module optimizes LV AC motor control for compressors, conveyors, pumps, and extruders. Many installations struggle with lengthy setup, inconsistent performance, and high commissioning costs; this module offers plug‑in readiness and a straightforward settings menu that speeds commissioning. The design reflects industry needs with IP00 enclosures standard for cabinet installs and an IP20 option for harsher environments, plus IEC-aligned specifications. CE‑style safety concepts are embedded in the architecture to support compliant operation in typical plant environments. By integrating these capabilities, the ABB solution reduces hardware needs and shortens time-to-value, while enabling scalable plant control and energy efficiency.
Product Information
Extended Description
3ABD00048522-D ABB: The ACS580-04 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The ACS580-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Plug-in ready ACS580-04 drive module delivers rapid deployment, reducing installation time and spare parts. It supports varied loads from compressors to mixers, enabling a single platform for multiple applications, which lowers inventory and simplifies maintenance. Built-in settings menus and setup assistants speed commissioning, reduce configuration errors, and ensure consistent performance across multiple drives in a line. The rugged design with IP00 enclosure, and IP20 option, provides reliable operation in industrial environments, minimizing enclosure integration risk and expansive cabling. Energy management features help lower overall electricity consumption, while the compact form factor simplifies cabinet integration and reduces wiring complexity. Compatibility with the ACS580 family supports scalable upgrades and future-proofing for expanding plants, addressing common objections about retrofit timelines and system compatibility. This approach is especially beneficial in sectors like food and beverage, plastics, textiles, and material handling where uptime and energy efficiency drive ROI.
Get a Quick Quote for a ABB 3ABD00048522-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048522-D?
Enquire Now
FAQs
Install the drive module in an IP00 cabinet as standard, with IP20 enclosure suitable for harsher environments. Connect power, motor leads, and any required fieldbus interfaces according to the ACS580 installation guide. Use the built‑in setup assistants to configure motor parameters, protection settings, and control mode, then perform a commissioning test to verify current, speed, and torque profiles.
The module corresponds to the ACS580-04 family with a 315 kW output rating and a 585 A current rating. It is a LV AC drive designed for variable and constant torque applications, with plug‑in readiness and configurable protection levels. Enclosures include IP00 standard and IP20 as an option for enhanced protection in harsher environments.
Yes. The ACS580‑04 585A variant is designed for general purpose motor control in light industries, including food and beverage. Its robust enclosure options, intuitive setup, and reliable motor control help maintain sanitary and cleanability standards while delivering consistent process performance and energy efficiency in production lines.
This drive supports IP ratings with standard IP00 enclosure and an IP20 option, ensuring cabinet installation flexibility. It follows IEC‑based design principles for reliability and safety, aligning with common industry expectations for CE‑like safety considerations in typical plant environments.
The drive reduces commissioning time through plug‑in readiness and built‑in setup assistants, lowers spare parts through a single platform for multiple applications, and minimizes wiring complexity. These benefits translate into shorter project timelines, reduced downtime, and improved energy management, contributing to a favorable return on investment over lifecycle maintenance.
