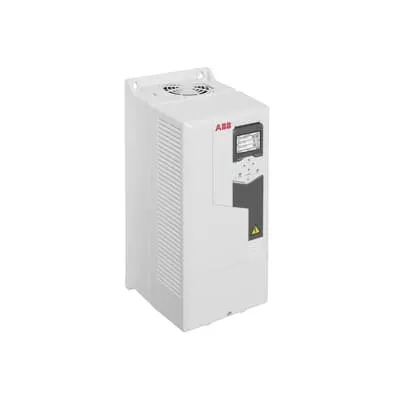

ABB ACS580-01-046A-4+X1574 Wall-Mounted Drive - IP21
Part Number: 3ABD00048690-D
Quick Summary
ACS580-01-046A-4+X1574 is a wall-mounted LV AC drive designed to control pumps, fans, and conveyors in light industries. Engineers often face long commissioning times and compatibility gaps; this drive reduces setup steps with plug-in readiness and built-in assistants. It features IP21 protection as standard, with IP55 and flange-mount options to meet harsher environments while maintaining easy installation. Together, these capabilities translate into lower downtime, reduced total cost of ownership, and reliable control for pumps, conveyors, or fans. This combination supports robust process control, energy efficiency, and faster project timelines for OEMs and end users alike.
Product Information
Extended Description
3ABD00048690-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature: Plug-in ready with built-in essential features. Benefit: Reduces commissioning time and simplifies maintenance, cutting total ownership costs. Application: Suitable for pumps, fans, and conveyors in light industry where quick startup is critical. Feature: IP21 standard enclosure with IP55 and flange mounting options. Benefit: Installation flexibility and protection across varying environments, enabling wall or panel mounting in compact lines. Application: Food & beverage, plastics, textiles, and material handling lines needing adaptable protection. Feature: Rugged design and straightforward setup menus. Benefit: Lower field service requirements and faster ramp-up, improving uptime and process reliability. Application: Compressors, extruders, centrifuges, and mixers in harsh factory settings. Feature: 22 kW power, 45 A current rating. Benefit: Handles moderate to high-demand motor loads with efficient torque control, reducing motor wear. Application: Medium-scale equipment drives where space is limited. Feature: Built-in diagnostics and assistants. Benefit: Quick troubleshooting and predictable maintenance planning. Application: OEM integrations and system upgrades across factory floors.
Get a Quick Quote for a ABB 3ABD00048690-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048690-D?
Enquire Now
FAQs
The drive is designed for wall mounting with a standard IP21 enclosure; IP55 and flange-mount options are available for tougher environments. Verify motor ratings, supply voltage, and computing space in the control cabinet, then utilize the built-in setup assistants to streamline commissioning and reduce wiring complexity.
Key specs include a 22 kW power rating and 45 A current rating for three-phase AC motors. The unit is designed for general purpose speed control with built-in features to simplify setup, diagnostics, and maintenance, supporting reliable operation in light-industrial applications.
Yes. The ACS580-01-046A-4+X1574 is positioned for light industries such as food & beverage and plastics, delivering robust control for compressors, conveyors, pumps, and extruders while enabling compact, easy-to-install drive solutions in these environments.
The standard IP21 enclosure provides essential protection, with IP55 and flange-mount variants available for higher protection needs. While CE is commonly expected for European deployments, confirm regional compliance with your procurement team and ABB documentation for your target market.
The plug-in readiness, built-in setup assistants, and reduced hardware requirements shorten installation and commissioning times, lowering labor costs. Integrated diagnostics support preventive maintenance, reducing unplanned downtime and extending motor life, delivering a favorable return on investment over the system’s lifetime.
