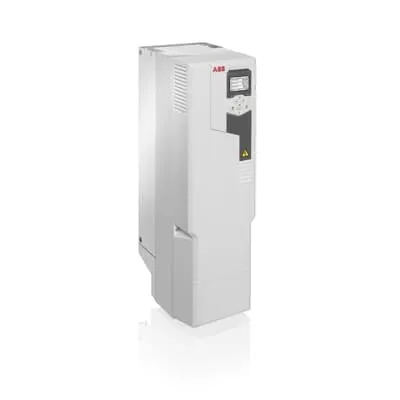

ABB ACS580-01-106A-4+X1574 VFD - IP21 Enclosure
Part Number: 3ABD00048694-D
Quick Summary
ABB ACS580-01-106A-4+X1574 is a plug-in ready variable frequency drive delivering precise motor control for compressors and conveyors. Users often grapple with lengthy setup, wiring complexity, and integration gaps when adding drives to existing PLCs. This model ships in a standard IP21 enclosure with IP55 and flange mounting options, providing rugged operation in varied environments. Built-in setup assistants and straightforward menus shorten commissioning, reduce maintenance, and lower total cost of ownership. With energy-efficient motor control and reliable performance, it supports lean manufacturing and predictable process outcomes.
Product Information
Extended Description
3ABD00048694-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature: The ACS580-01 is a plug-in ready wall-mounted drive that minimizes installation time by reducing external wiring, cabinetry, and bespoke hardware. Business impact: Fewer enclosure penetrations and cabling translate to faster delivery, lower installation labor costs, and easier changeovers. Application: Ideal for compressors, conveyors, pumps, and fans in light-industrial environments where rapid commissioning matters. Feature: Built-in essential features and a versatile settings menu provide intuitive parameterization, assistants, and templates that remove guesswork during drive selection. Business impact: Faster commissioning, fewer configuration errors, and simplified maintenance workflows help technicians stay productive and compliant with internal standards. Application: Suitable for new lines or retrofits in food and beverage, textile, and agriculture sectors where quick ramp-up and traceable settings are valuable. Feature: Standard IP21 enclosure with IP55 and flange mounting options offers flexible installation in varying environments. Business impact: Enhanced environmental protection reduces risk of dust ingress and moisture damage, extending drive life and improving uptime. Application: Plants with dust, moisture, space constraints, or retrofit needs benefit from multiple mounting choices and rugged enclosure performance. Feature: A 55 kW power rating and 106 A current rating enable robust control of moderate-to-large motors across multiple machines. Business impact: Precise torque and speed control minimize energy waste, mechanical wear, and process variance, delivering measurable efficiency gains. Application: Pumps, extruders, centrifuges, and mixers in process lines requiring reliable VFD performance and scalable control strategies. Feature: Built-in diagnostics, fault logging, and robust connectivity support proactive maintenance and fast troubleshooting. Business impact: Proactive fault detection and remote monitoring reduce downtime and extend asset life. Application: Industrial automation projects that rely on consistent monitoring and quick troubleshooting across lines.
Get a Quick Quote for a ABB 3ABD00048694-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048694-D?
Enquire Now
FAQs
This wall-mounted drive uses a standard IP21 enclosure and requires a clean, vibration-free mounting surface, adequate ventilation, and proper 3-phase wiring. Plan for the 55 kW / 106 A rating, route cables with attention to EMI, and leverage the built-in setup assistants to reduce commissioning time and avoid misconfigurations. Also ensure compatibility with your control system interface.
By providing precise motor speed control and soft-start capabilities, the drive reduces energy waste, lowers peak currents, and minimizes mechanical wear. It supports ramping profiles and closed-loop tuning to match load demand, delivering measurable energy efficiency gains and extended asset life in light-industrial applications.
Yes. The 55 kW rating and 106 A current deliver robust performance for constant- and variable-torque loads, including compressors, fans, pumps, extruders, centrifuges, and conveyors. Its plug-in module simplifies integration with standard PLCs and control interfaces, reducing integration risk during upgrades.
Enclosure options include IP21 as standard, with IP55 and flange mounting units available for harsher environments or restricted spaces. These options provide better dust and moisture protection, easier panel integration, and more flexible installation in dusty or washdown-prone factory areas.
Adopting the ACS580-01-106A-4+X1574 can shorten project timelines, reduce wiring and hardware costs, and streamline maintenance. With built-in diagnostics, quick setup, and scalable parameter sets, technicians can accelerate commissioning, minimize downtime, and improve asset utilization, delivering a favorable return on investment over the life of the equipment.
