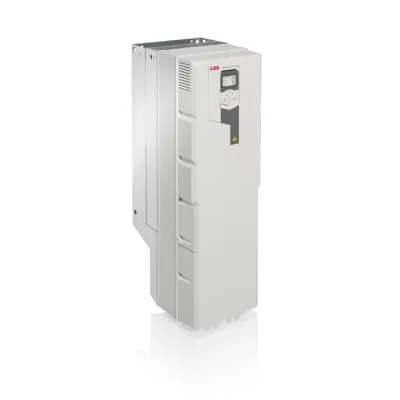

ABB ACS580-01-246A-4+X1574 Wall-mounted Drive - IP21 Enclosure
Part Number: 3ABD00048698-D
Quick Summary
ABB ACS580-01-246A-4+X1574 is a general-purpose LV AC wall-mounted drive for controlling compressors, conveyors, pumps, and mixers. It is designed to streamline installations, reducing wiring, setup time, and commissioning effort on busy manufacturing floors. The drive features an IP21 enclosure as standard, with IP55 and flange mounting options available to suit diverse environments. By leveraging plug-in readiness and a straightforward settings menu, you can accelerate commissioning, simplify maintenance, and improve process visibility. This supports better energy management and plant uptime, aligning with broader goals of scalable automation, motor control efficiency, and lower total cost of ownership in light industrial applications.
Product Information
Extended Description
3ABD00048698-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Plug-in readiness and built-in essentials streamline selection and commissioning, reducing engineering hours and spare part requirements while cutting total project cost. In practice, this enables faster ramp-up for compressors, conveyors, and pumps, especially in food and beverage, plastics, and agriculture environments. The integrated feature set means fewer cables and no extra hardware, which translates to lower installation risk and easier field maintenance, reducing downtime and training requirements for service staff. The wall-mounted ACS580-01 with IP21 standard protection offers flexible installation in machine frames or control cabinets, and the IP55 option plus flange mounting support lets you tailor protection for harsher environments or space-constrained layouts. A robust design delivers long service life with minimal maintenance, preserving machine availability for critical lines such as extruders and mixers. The intuitive parameterization and built-in assistants shorten commissioning time, enabling OEMs and end users to achieve consistent performance with less risk of misconfiguration. Compatibility with the broader ACS580 family ensures scalable control as plant needs grow, while straightforward diagnostics support quick fault isolation and proactive maintenance planning.
Get a Quick Quote for a ABB 3ABD00048698-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048698-D?
Enquire Now
FAQs
Ensure the drive is mounted in its IP21 enclosure as standard, connect to a suitable 3-phase supply, and use the plug-in ready setup to begin parameterization. The unit supports common motor control scenarios for compressors, conveyors, pumps, and similar loads, with straightforward assistants guiding setup to minimize wiring and commissioning time.
The ACS580-01-246A-4+X1574 is rated for 132 kW (Pn) with a nominal current of 246 A, suitable for high-torque, variable torque or constant torque applications in light industrial tasks such as fans and extruders.
Ideal for compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans in food & beverage, plastics, textiles, material handling, and agriculture. Its plug-in readiness and built-in features help OEMs and maintenance teams achieve reliable process control with reduced integration effort.
The drive ships with an IP21 standard enclosure, with IP55 and flange mounting options available to meet higher protection needs or space constraints. This provides versatile installation in cabinets, machine frames, and exposed environments while supporting reliable operation.
Plug-in readiness and built-in features reduce engineering time and spare parts, while a robust design lowers downtime and maintenance costs. Quick commissioning, simple diagnostics, and scalable compatibility with the ACS580 family help maximize uptime and optimize energy use across evolving production lines.
