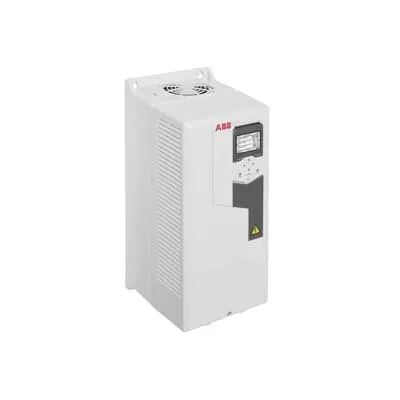

ABB 3ABD00048713-D Drive - 22 kW IP21 Wall-Mounted
Part Number: 3ABD00048713-D
Quick Summary
ABB 3ABD00048713-D drive is a plug-in ready, wall-mounted LV AC drive that delivers precise speed control for compressors, conveyors, and pumps. Engineers often face long commissioning cycles and integration challenges when adding new drives to existing control architectures, which can delay production. This ACS580-01 platform features IP21 enclosure as standard, with IP55 and flange-mount options available to match your environmental needs. The integrated setup assistants and a rugged design minimize downtime and maintenance effort, while enabling robust process control. In addition to core control capabilities, this drive supports energy-efficient operation and scalable automation, making it a prudent choice for industrial applications in food & beverage, plastics, textiles, and material handling.
Product Information
Extended Description
3ABD00048713-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature: Plug-in ready with built-in essential features → Business Impact: Reduces upfront hardware and setup time, lowering total installed cost and accelerating time-to-value → Application: Use across compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans in light-industrial lines. Feature: Built-in configuration assistants and intuitive settings menu → Business Impact: Fast commissioning, simplified operation, and reduced technician dependence → Application: Quick start-ups in dynamic manufacturing environments, improving line uptime and operator efficiency. Feature: Flexible mounting and enclosure options (IP21 standard; IP55 and flange mounting available) → Business Impact: Flexible installation in tight spaces and harsh environments, decreasing enclosure-related redesigns → Application: Wall-mounted installations in clean rooms or production floors with variable ambient conditions. Feature: Robust construction and long-term reliability → Business Impact: Lower maintenance costs and extended service intervals → Application: Continuous operation in conveying systems, mixers, and pump stations with demanding duty cycles. Feature: Wide application support with 22 kW, 45 A capability → Business Impact: Precise torque and speed control for both variable and constant torque loads → Application: Drives across light to moderate industrial processes such as food processing lines, plastic extrusion stages, textile handling, and agricultural equipment. Feature: Energy-management and plant-wide process control → Business Impact: Improved energy efficiency and measurable operating savings → Application: Integrated productivity gains in batch and continuous processes, aligning with sustainability targets.
Get a Quick Quote for a ABB 3ABD00048713-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048713-D?
Enquire Now
FAQs
The drive ships plug-in ready for LV AC installations. Start with verifying supply voltage, connect motor leads to the drive output, and wire control signals per the user manual. Use the built-in setup assistants to configure motor parameters, protection settings, and control modes. Ensure proper mounting, cooling, and IP21 enclosure compliance, with IP55 option if environmental protection requires it.
The ACS580-01 supports variable and constant torque applications including compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans. With 22 kW and 45 A ratings, it provides precise torque control for both start/stop cycles and continuous operation, helping to optimize production throughput and reduce mechanical wear on motors and drive trains.
Yes, the ACS580-01 is provided with an IP21 enclosure as standard. For harsher environments or enclosure protection, IP55 and flange mounting variants are available, allowing installation in harsher production floors or closer to the application, reducing control cable runs and improving overall system reliability.
Built-in features include straightforward setup menus and assistants, reducing commissioning time and operator training needs. The rugged design supports reliable operation with minimal maintenance, and the integrated diagnostics help anticipate faults before they impact production. This translates to lower downtime, predictable maintenance windows, and reduced service costs.
Expect improved process control, smoother startup, and better energy efficiency due to optimized torque and speed profiles. The 22 kW, 45 A capability accommodates a wide range of loads, delivering measurable energy savings and reduced wear on mechanical components. The plug-in design and built-in features shorten project timelines and lower total cost of ownership.
