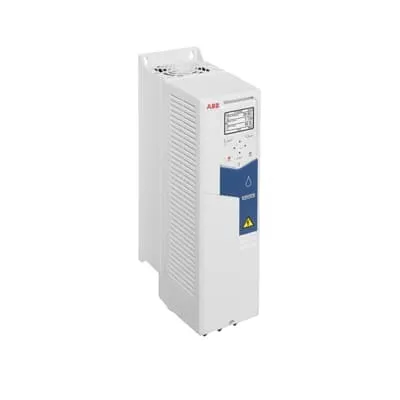

ABB 3ABD00048733-D LV AC wall-mounted drive - IP21/IP55 enclosure options
Part Number: 3ABD00048733-D
Quick Summary
The ABB 3ABD00048733-D LV AC wall-mounted drive delivers efficient pump control for water and wastewater systems. Operators often struggle with energy waste and pump wear in aging plants. With CE compliance, an IP21 enclosure, and optional IP55 protection for tougher environments, it meets safety and reliability standards. Its sensorless flow calculation, quick ramps, and dry-run protection simplify commissioning. Coupled with Drive Composer and an optional Bluetooth control panel, it delivers quick ROI through energy savings and reduced maintenance. The built-in energy calculator visualizes potential savings, helping utilities justify investments and optimize pump duty cycles. This makes it a practical choice for utilities, municipalities, and industrial water users seeking reliable, standards-compliant motor control.
Product Information
Extended Description
3ABD00048733-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Sensorless flow calculation and multipump control provide precise pump sequencing without external flow sensors, reducing hardware costs. This translates to lower total cost of ownership and tighter process control for municipal water networks, wastewater lift stations, and industrial pumping loops. Level control, dry run protection, and soft pipe fill safeguard pump operation during start-up and shut-down, extend pump life, reduce outages, and lower maintenance needs in elevated tank systems, bore pumps, and raw water lifts. Intuitive Hand-Off-Auto control panel, Drive Composer configuration software, and an optional Bluetooth interface cut commissioning time, ease field diagnostics, and simplify ongoing support for utilities and contractors. The built-in energy calculator visualizes energy savings, supporting optimization of duty cycles and helping teams meet sustainability targets. Rugged IP21 standard enclosure, with IP55 option, offers installation flexibility for wall-mounted setups in plant rooms and outdoor-rated configurations, while a robust 11 kW, 25 A rating aligns with common pumping budgets and equipment footprints.
Get a Quick Quote for a ABB 3ABD00048733-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048733-D?
Enquire Now
FAQs
The drive is designed for wall mounting with a compact footprint. Plan for a clean, vibration-free mounting surface, adequate clearance for cooling, and access to hand-off-auto controls, Drive Composer, and optional Bluetooth panel. Ensure proper wiring to 11 kW, 25 A load ratings and compliance with local electrical codes. IP21 is standard; IP55 options provide additional environmental protection where needed.
Key specs include 11 kW drive capacity and a 25 A current rating, suited for typical pumping loads in water/wastewater systems. Sensorless flow calculation enables accurate pump speed control without external sensors, while quick ramps reduce mechanical stress during starts. Dry run protection and level control protect pumps from dry running and overfill conditions, improving reliability.
Yes, the ABB 3ABD00048733-D is CE compliant, aligning with essential health, safety, and environmental requirements. It is available in an IP21 enclosure as standard, with IP55 enclosure options for harsher environments. This combination supports installation in typical plant rooms and more exposed outdoor or industrial settings, depending on your site conditions.
Sensorless flow calculation optimizes pump performance by adapting speed without external sensors, reducing installation complexity and potential sensor failures. Dry run protection detects when a pump would run without adequate liquid, triggering a safe stop to prevent motor and impeller damage. Together, these features lower maintenance costs and extend equipment life in variable flow scenarios.
ROI comes from reduced energy consumption due to optimized pump control, lower maintenance costs from protective features, and faster commissioning via Drive Composer and the Hand-Off-Auto panel. The built-in energy calculator provides visibility into savings, supporting capacity planning and justifying capital expenditure for utilities and contractors.
