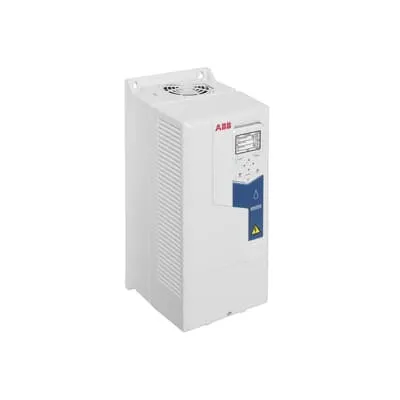

ABB 3ABD00048734-D AC Drive - IP21 Wall-Mount
Part Number: 3ABD00048734-D
Quick Summary
ABB ACQ580-01 LV AC drive for water and wastewater applications delivers precise pump control and energy efficiency. Engineers often struggle with energy waste, mismatched pump head, and unreliable dry-run protection in demanding wastewater environments. This wall-mounted drive ships with an IP21 enclosure as standard and offers IP55 and flange-mount variants, aligning with industry-standard safety and environmental requirements. The solution also leverages built-in energy calculations and intuitive control interfaces, supporting cost-effective commissioning and ongoing optimization. By combining advanced pump-app features with accessible tooling, it enables measurable ROI through smarter, more reliable pumping across utilities and treatment facilities.
Product Information
Extended Description
3ABD00048734-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Built-in pump application functionality including sensorless flow calculation, multipump control, level control, soft pipe fill, and dry run protection. Business Impact: Delivers energy-efficient flow management, reduces pump downtime, and minimizes installation complexity. Application: Water and wastewater pumping stations needing reliable multi-pump coordination and protection. Feature: Energy calculator and quick ramps. Business Impact: Visualizes potential energy savings, enables strategic parameter tuning, and lowers operating costs. Application: Utilities implementing energy performance programs and ongoing process optimization. Feature: Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth control panel. Business Impact: Speeds commissioning, simplifies remote diagnostics, and enhances maintenance planning. Application: Plant-wide automation projects and field service environments. Feature: IP21 enclosure by default with IP55 and flange-mount variants. Business Impact: Flexible installation options and improved protection for variable environments, reducing retrofit costs. Application: Wall-mounted installations in space-constrained plant rooms. Feature: Protection and reliability features including dry run protection and quick ramp times. Business Impact: Extends pump life, reduces service visits, and supports smoother start/stop cycles in dynamic loads. Application: Wastewater lift stations and process pumps with frequent startup events.
Get a Quick Quote for a ABB 3ABD00048734-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048734-D?
Enquire Now
FAQs
For wall-mount installation, ensure a stable vertical surface with adequate clearance for ventilation and wiring access. The unit ships with an IP21 enclosure as standard and offers IP55 and flange-mount variants for harsher environments. Plan for space to access the Hand-Off-Auto control panel and, if needed, position the Drive Composer PC-tool interface nearby for commissioning and diagnostics.
Sensorless flow calculation provides pump-flow visibility without external flow meters, improving control accuracy, reducing wiring and sensor costs, and enabling dynamic adjustments to maintain target head and flow. In wastewater pumping, this translates to steadier pressure, lower energy use, and improved system reliability even when pipe networks experience variable loads.
Yes. The ACQ580-01 includes multipump control and level control features designed for multi-pump wastewater scenarios. This enables coordinated operation, cascade sequencing, and level-based pump switching, reducing surge loads, extending pump life, and optimizing energy consumption across the pumping station.
The drive ships with a standard IP21 enclosure and offers IP55 variant options, plus flange-mount configurations for more robust installations. It includes dry-run protection to prevent costly pump damage, soft-start ramps to reduce mechanical stress, and supports reliable operation in challenging water and wastewater environments.
ROI benefits accumulate from reduced energy consumption via efficient pump control, lower pump-wear from soft ramps and dry-run protection, and decreased maintenance visits thanks to integrated protection features. The built-in energy calculator helps quantify savings, while easy commissioning with Drive Composer and optional Bluetooth support accelerates project timelines.
