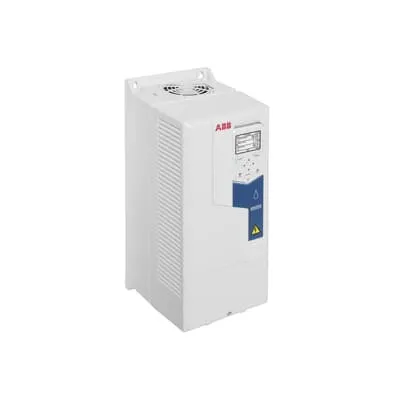

ABB 3ABD00048736-D LV AC wall-mounted drive - IP21/IP55 options
Part Number: 3ABD00048736-D
Quick Summary
ABB 3ABD00048736-D LV AC wall-mounted drive for water and wastewater applications delivers precise pump control and energy efficiency. Engineers often struggle with energy waste, frequent pump failures, and challenging commissioning in demanding water networks. This model ships with IP21 standard enclosure and offers IP55 variants and flange-mount options to suit harsh environments. By integrating sensorless flow calculation, multipump control, level control, and an energy calculator, it provides tangible business value through reduced energy consumption, lower maintenance costs, and faster project timelines. The result is a robust, user-friendly solution that aligns with modern plant standards and long-term ROI expectations.
Product Information
Extended Description
3ABD00048736-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Built-in pump application functionality including sensorless flow calculation, multipump control, and level control. Benefit: Enables precise control, reduces external hardware needs, and drives energy savings across variable head conditions. Application: Municipal and industrial water pumping stations seeking reliable multi-pump operation. Long-tail keywords: sensorless flow calculation, multipump control, level control, water pump drive, pump control system. Feature: Energy calculator integrated into the drive. Benefit: Visualizes potential energy savings, supports life-cycle cost planning, and justifies capital expenditure. Application: Utilities planning maintenance budgets and efficiency improvements. Long-tail keywords: energy calculator, energy efficiency in pumps, pump energy savings. Feature: Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth control panel. Benefit: Accelerates commissioning, simplifies field tuning, and enables remote diagnostics. Application: On-site start-up and remote service for rapid deployment. Long-tail keywords: Hand-Off-Auto panel, Drive Composer, Bluetooth-enabled diagnostics. Feature: IP21 enclosure standard with IP55 and flange-mount variants. Benefit: Flexible installation, protects electronics in varying environments, and supports compact layouts. Application: Wall-mounted installations in space-constrained pump rooms. Long-tail keywords: IP21 enclosure, IP55 option, wall-mounted drive. Feature: Impeller cleaning and dry-run protection features. Benefit: Maintains pump efficiency, reduces unexpected downtime, and extends pump life. Application: Wastewater pumps with solids or solids-containing fluids. Long-tail keywords: dry-run protection, impeller cleaning, pump maintenance. Feature: Quick ramps and compact robust design. Benefit: Gentle motor ramping reduces mechanical wear and supports precise process control. Application: Systems requiring smooth start-ups in variable load conditions. Long-tail keywords: soft start, quick ramps, compact VFD.
Get a Quick Quote for a ABB 3ABD00048736-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048736-D?
Enquire Now
FAQs
The 3ABD00048736-D is designed as a wall-mounted LV AC drive with built-in pump application features. It supports common ABB pump configurations and offers easy integration with the Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth. For retrofit projects, verify flange mounting options and enclosure IP ratings to match your plant layout and protection requirements.
Key specs include a 22 kW motor drive with 45 A standard current rating. The enclosure is IP21 by default, with IP55 and flange-mount variants available. The drive provides sensorless flow calculation, multipump control, level control, soft pipe fill, and dry run protection, along with an integrated energy calculator to quantify savings.
Yes. The unit is purpose-built for water and wastewater use with features like sensorless flow calculation, dry run protection, level control, and impeller-cleaning support. Its IP ratings and compact wall-mount design make it well-suited for pump stations, lift stations, and other wastewater infrastructure where reliability and efficiency matter.
The standard enclosure is IP21, providing basic protection for indoor or sheltered installations. IP55 variants and flange-mount options are available to increase protection in harsher environments and to adapt to different installation geometries. Selection depends on your pump room conditions and exposure to dust, water spray, or dampness.
The drive includes dry-run protection to prevent pump damage, impeller-cleaning capabilities to sustain efficiency, and an energy calculator to model and demonstrate savings. Coupled with easy commissioning via Hand-Off-Auto and Drive Composer, these features translate into lower maintenance costs and a faster path to return on investment for municipal and industrial pumping projects.
