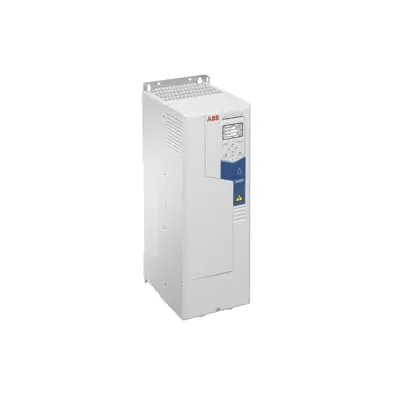

ABB 3ABD00048737-D LV AC wall drive - IP55 variants
Part Number: 3ABD00048737-D
Quick Summary
ABB 3ABD00048737-D LV AC wall-mounted drive powers efficient water and wastewater pumping. Engineers often contend with energy waste, inconsistent flow, and dry-run risk in aging infrastructure. The unit ships with an IP21 enclosure as standard and offers IP55 variants and flange mounting options for tougher environments. Built-in pump features such as sensorless flow calculation, level control, soft pipe fill, and dry-run protection, plus quick ramps and impeller cleaning, help reduce maintenance and extend pump life. With an intuitive Hand-Off-Auto panel, Drive Composer PC tool, and optional Bluetooth control panel, commissioning is faster while ongoing monitoring via the energy calculator delivers measurable cost savings and improved system performance.
Product Information
Extended Description
3ABD00048737-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation and multipump control. Business Impact: Eliminates external flow meters and reduces maintenance while improving control accuracy. Application: Municipal and industrial pumping networks where precise flow balancing across pumps minimizes energy use and extends equipment life. Feature: Level control and soft pipe fill. Business Impact: Prevents water hammer and dry starts, protecting pipes and valves while enabling smooth ramping to target head. Application: Wastewater lift stations and water-supply boosters requiring reliable level management. Feature: Dry run protection and quick ramps. Business Impact: Reduces pump damage from dry-running and cuts startup energy spikes, lowering maintenance cycles and energy costs. Application: Pumps starting from empty tanks or during low-flow periods in treatment plants. Feature: Impeller cleaning and built-in energy calculator. Business Impact: Maintains optimal pump performance with less maintenance while quantifying energy savings for ROI tracking. Application: Long-term operation in solids-laden wastewater where impeller fouling is common. Feature: Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth panel. Business Impact: Speeds commissioning, simplifies tuning, and enables remote diagnostics to reduce downtime. Application: Field deployments and retrofit projects across water treatment and distribution networks. Feature: Compact wall-mounted design with IP21 standard and IP55 variants plus flange mounting options. Business Impact: Eases installation in constrained spaces and expands mounting flexibility, lowering installation costs. Application: Municipal water plants, treatment facilities, and industrial pumping stations.
Get a Quick Quote for a ABB 3ABD00048737-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048737-D?
Enquire Now
FAQs
This drive ships with an IP21 enclosure as standard and offers IP55 variants plus flange mounting options. It is designed for wall installation, enabling compact layouts in space-constrained facilities. For retrofit projects, the IP55 variants provide enhanced protection against moisture and washdown conditions while preserving easy access for maintenance.
Key specs include a nominal power of 30 kW and current capability of 62 A. The drive features sensorless flow calculation, multipump control, level control, dry-run protection, soft pipe fill, and quick ramps. It integrates an energy calculator for on-site energy auditing and supports Hand-Off-Auto operation and Drive Composer PC tooling.
Yes. The drive is designed specifically for water and wastewater pumping, with built-in pump application features like sensorless flow calculation, level control, and dry-run protection that address common municipal and industrial wastewater challenges. Its wall-mounted form and IP55 variants provide robust protection in wet environments typical of treatment plants and lift stations.
The standard enclosure is IP21, with IP55 variants available and flange mounting options for flexible installation. While CE certification details aren’t listed here, the IP-rated variants and rugged design align with common regulatory expectations for equipment used in water and wastewater facilities.
The integrated energy calculator enables quantifiable energy savings, while dry-run protection and impeller-cleaning features reduce maintenance cycles and extend pump life. Quick ramping and efficient pump control minimize wear, helping to justify capital expenditure through lower operating costs and improved system uptime in municipal and industrial pumping applications.
