ABB ACQ580-01-073A-4+X1666+N7560 Drives - IP21 Enclosure
Part Number: 3ABD00048738-D
Quick Summary
ACQ580-01-073A-4+X1666+N7560 drives provide precise LV AC motor control for water and wastewater pumping applications. Operators often confront energy waste, variable head conditions, and unreliable pump sequencing, which raise operating costs. The solution features IP21 standard enclosures with optional IP55 and flange-mount options to meet site requirements, plus sensorless flow calculation and advanced pump protection. By integrating Hand-Off-Auto control, Drive Composer PC tool, and optional Bluetooth control, the system delivers predictable performance, faster commissioning, and measurable energy savings for utilities and industrial water users.
Product Information
Extended Description

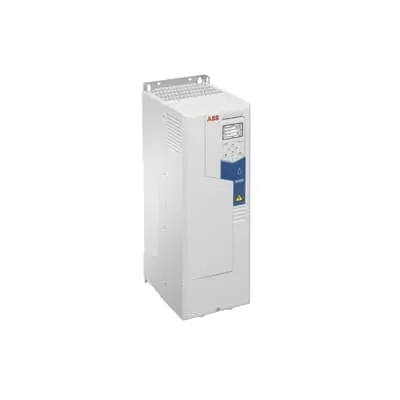

3ABD00048738-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation enables accurate pump modulation without external sensors. Business Impact: Reduces instrumentation costs while improving control precision and energy efficiency. Application: Water and wastewater pumping stations where head varies and sensor maintenance is costly. Feature: Multipump control coordinates multiple pumps to optimize sequencing and reduce cycling. Business Impact: Lower wear, reduced peak demand, and smoother system response. Application: Utility pumping networks and treatment facilities with fluctuating demand. Feature: Level control and dry run protection safeguard pumps against running dry and maintain process stability. Business Impact: Extended pump life, fewer unscheduled maintenance events, and safer operation. Application: Lift stations and treatment plant basins. Feature: Soft pipe fill and quick ramp functions minimize water hammer and hydraulic surges during start/stop. Business Impact: Lower mechanical stress, quieter operation, and longer pipe life. Application: New installations and upgrades in municipal piping networks. Feature: Built-in energy calculator and robust fault handling provide visibility into energy savings and rapid fault diagnosis. Business Impact: Demonstrates ROI, supports regulatory reporting, and reduces troubleshooting time. Application: Plant-wide efficiency audits and commissioning. Feature: Hand-Off-Auto interface, Drive Composer PC tool, and optional Bluetooth control panel enable fast setup, remote monitoring, and easy maintenance. Business Impact: Shorter project timelines, simplified operation for non-experts, and improved asset management. Application: Field installations and centralized control rooms. Feature: IP21 enclosure with available IP55 and flange mounting units offers installation flexibility in variable environments. Business Impact: Simplified compliance and reduced installation constraints. Application: Wall-mounted drives in compact pump rooms and exposed outdoor spaces where protection is needed.
Get a Quick Quote for a ABB 3ABD00048738-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048738-D?
Enquire Now
FAQs
Installation is streamlined with a wall-mounted configuration rated for IP21 by default and optional IP55. Start by verifying supply voltage, current rating, and enclosure location. Use the Drive Composer PC tool for configuration, connect to Hand-Off-Auto control, and program the pump sequencing to match system head curves. Ensure proper cable routing to minimize EMI and follow ABB installation guidelines for wastewater environments.
This drive excels in water and wastewater pumping, including utility lift stations, treatment plants, and municipal pumping networks. It supports sensorless flow calculation, multipump coordination, level control, and dry run protection, enabling efficient, reliable operation across variable head conditions and demand profiles typical of pumping stations and distribution networks.
Yes. The ACQ580-01-073A-4+X1666+N7560 includes sensorless flow calculation to optimize pump speed without extra sensors, and dry run protection to prevent motor damage when fluid levels drop. These features reduce maintenance, extend equipment life, and improve process reliability, especially in wastewater applications where head and fluid levels can be unpredictable.
The standard configuration uses an IP21 enclosure, suitable for interior wall mounting in clean environments. IP55 and flange-mount options are available to enhance protection against dust, water ingress, and mechanical stress. Choosing the appropriate rating ensures compliance with site requirements and can simplify qualification for outdoor or harsh environments in wastewater facilities.
The drive provides an energy calculator that visualizes potential savings from optimized speed control, reduced pumping head losses, and coordinated multipump operation. By lowering motor current during partial-load conditions and smoothing start/stop transients, facilities typically achieve lower energy bills, extended pump life, and faster project ROI, especially in systems with variable demand and frequent cycling.
