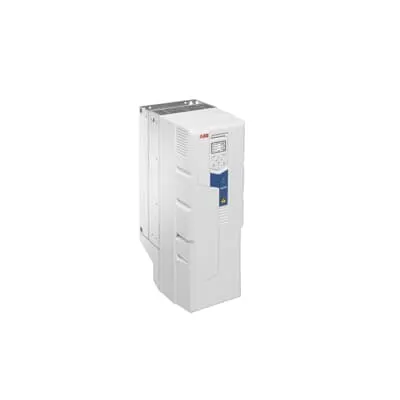

ABB 3ABD00048741-D LV AC wall-mounted drive - IP21/IP55
Part Number: 3ABD00048741-D
Quick Summary
The LV AC wall-mounted drive ABB 3ABD00048741-D delivers efficient pump control for water and wastewater systems. Operators often confront energy waste and premature equipment wear when pumping profiles fail to match demand or when installations are space constrained. It provides IP21 enclosure as standard and IP55 protection as an option, ensuring rugged operation in demanding environments. With pump-centric features such as sensorless flow calculation, multipump control, and level control, it helps reduce energy use and extend equipment life. Hand-Off-Auto operation, Drive Composer PC tool integration, and optional Bluetooth control enable faster commissioning, while the built-in energy calculator translates hydraulic challenges into measurable cost savings and reliable process performance. Designed for municipal utilities and industrial plants, it scales to varying pumping configurations with clear business value.
Product Information
Extended Description
3ABD00048741-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: The drive includes sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and an impeller cleaning solution. This combination lowers energy consumption, reduces unplanned downtime, and extends pump life in water and wastewater installations. Application: municipal pumping stations and industrial process plants seeking reliable, energy-efficient operation. Feature → Business Impact → Application: Built-in energy calculator visualizes potential energy savings, enabling ROI justification and clearer budgeting for energy projects. Application: engineering teams needing tangible justification for VFD investments. Feature → Business Impact → Application: Intuitive Hand-Off-Auto panel plus Drive Composer PC tool and optional Bluetooth enable rapid commissioning, remote diagnostics, and simplified maintenance. Application: field service teams and retrofit projects where downtime is costly. Feature → Business Impact → Application: IP21 standard enclosure with IP55 option provides space-efficient, wall-mounted deployment suited to plant rooms and outdoor-rated installations. Application: compact installations with space and environmental considerations. Feature → Business Impact → Application: 75 kW, 145 A rating supports robust motor control for high-demand pumps; dry run protection and quick ramps reduce mechanical stress. Application: large-diameter and high-head pumping tasks in water treatment and wastewater facilities.
Get a Quick Quote for a ABB 3ABD00048741-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048741-D?
Enquire Now
FAQs
This unit is a wall-mounted LV AC drive with a standard IP21 enclosure and optional IP55. It fits typical municipal and industrial pump setups and supports field integration via the Drive Composer PC tool. Ensure electrical ratings match your motor (Pn 75 kW, 145 A) and that the site allows wall mounting in a suitable enclosure or room.
Sensorless flow calculation enables precise pump head and flow control without additional sensors, reducing hardware cost and maintenance. It improves startup sequencing and control accuracy, enabling energy savings, smoother operation, and more predictable process performance in water and wastewater pumping applications.
Yes. The ACQ580-01-based drive includes multipump control and level control capabilities, plus features like dry run protection and quick ramps. This combination supports coordinated pumping strategies, reduces cavitation risk, and maintains consistent levels in tanks or basins, which is critical for wastewater management and industrial water processes.
The drive ships with an IP21 standard enclosure and offers an IP55 option for harsher environments. This provides protection against dust and moisture relevant to pumping facilities. The product is designed for robust operation in water and wastewater settings and includes pump-specific protections to enhance reliability.
The built-in energy calculator visualizes potential energy savings, supporting retrofit justification and budgeting. Combined with sensorless flow control, dry run protection, and efficient ramping, you can expect reduced energy consumption, lower maintenance costs, and extended pump life, enabling a faster payback in municipal and industrial pumping projects.
