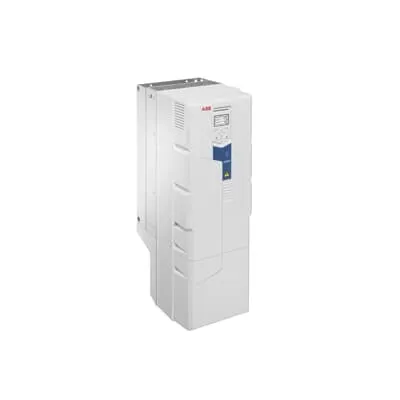

ABB 3ABD00048742-D LV AC Wall-Mounted Drive - IP21 Enclosure
Part Number: 3ABD00048742-D
Quick Summary
ABB 3ABD00048742-D LV AC wall-mounted drive powers water and wastewater pumping with precise motor control. Engineers face energy waste, unpredictable flow, and complex multi-pump coordination in treatment plants. This drive integrates sensorless flow calculation, level control, dry-run protection, soft pipe fill, quick ramps, and impeller cleaning, delivered in an IP21 enclosure with IP55 option and CE-compliant safety. The compact design simplifies wall installation in space-constrained facilities, while the built-in energy calculator visualizes potential savings. With Drive Composer and optional Bluetooth, commissioning is faster and maintenance costs lower, supporting reliable operation in modern water utilities.
Product Information
Extended Description
3ABD00048742-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation. Business impact: Optimizes pump speed without external sensors, delivering energy savings and reduced maintenance costs. Application: Water and wastewater pumping stations where flow varies and sensor install adds complexity. Feature: Multipump control and level control. Business impact: Improves pump sequencing, reduces cycling wear, and stabilizes system pressure. Application: Multi-pump configurations in treatment plants and lift stations, enabling coordination across pumps for peak demand. Feature: Soft pipe fill, dry run protection, and quick ramps. Business impact: Minimizes water hammer, protects impellers, and enables safe, rapid startups, extending equipment life and reducing downtime. Application: Start-up sequences in wastewater handling and water supply networks. Feature: Built-in energy calculator. Business impact: Provides real-time visibility into energy savings, enabling data-driven maintenance and budgeting decisions. Application: Plant-wide energy management and procurement planning. Feature: Intuitive user interface and connectivity. Business impact: Simplifies commissioning with Hand-Off-Auto control, Drive Composer PC tool, and optional Bluetooth panel, accelerating project delivery and reducing on-site labor. Application: Field installations, retrofits, and new builds. Feature: Enclosure and mounting flexibility. Business impact: IP21 standard with IP55 option and flange mounting units offer installation versatility for indoor spaces and harsher environments, lowering integration risk. Application: Indoor utility rooms, protected plant areas, and retrofit projects. AdditionalContext: The drive also includes a dedicated solution for keeping pump impellers clean, supporting long-term reliability in challenging wastewater applications.
Get a Quick Quote for a ABB 3ABD00048742-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048742-D?
Enquire Now
FAQs
The drive is designed for wall mounting with a 3-phase supply and fits standard electrical cabinets. Use Drive Composer for parameter setup, verify the IP21 enclosure suitability, and consider the optional IP55 flange mounting if exposure is higher. Confirm motor current, fault settings, and pump sequencing to ensure proper multipump operation.
Sensorless flow calculation optimizes pump speed directly from motor performance and process variables, reducing sensor installation costs, minimizing calibration time, and delivering measurable energy savings while maintaining precise flow control for water and wastewater applications.
Yes. The ACQ580-01-169A drive is offered with IP21 as standard and IP55 mounting options are available, along with flange mounting units, to suit more demanding indoor or outdoor installations and simplify integration in retrofit projects.
Dry-run protection detects when a pump is not primed or running dry, preventing motor damage, reducing unplanned maintenance, and extending pump life, which is especially valuable in wastewater handling where suction conditions can vary.
The energy calculator enables rapid visualization of energy savings from speed modulation and efficient pump sequencing, supporting ROI analyses. Quick ramps reduce inrush and wear during starts, lowering maintenance costs and improving overall plant uptime.
