ABB 3ABD00048743-D LV AC Wall-Drive - 110 kW IP21
Part Number: 3ABD00048743-D
Quick Summary
ABB 3ABD00048743-D is a LV AC wall-mounted drive that optimizes pump control for water and wastewater applications. Operators struggle with energy waste, pump wear, and unreliable dry-run protection in aging systems. With IP21 standard enclosure and optional IP55 and flange-mount variants, this drive fits harsh plant environments and installation constraints. Its sensorless flow calculation, level control and energy calculator translate to measurable savings, while the intuitive Hand-Off-Auto panel and Drive Composer streamline start-up and maintenance. For project teams, the compact wall-mounted footprint simplifies retrofits and reduces installation time, delivering faster time-to-value and lower lifecycle costs.
Product Information
Extended Description

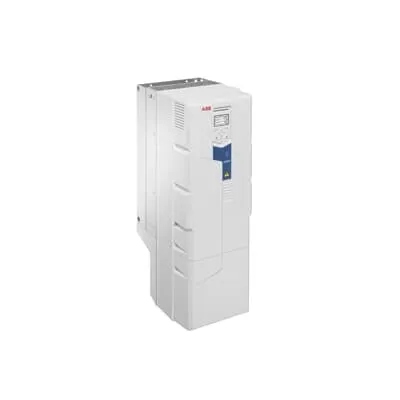

3ABD00048743-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Built-in pump application functions including sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and an impeller-cleaning solution. Business Impact: Enables precise pump sequencing, reduces instrumentation needs, minimizes pump wear, and protects equipment, all contributing to lower maintenance costs. Application: Ideal for multi-pump water and wastewater pumping stations requiring robust protection and guided flow management. The result is improved process stability and reduced energy waste. Feature: Energy-saving visualization via the built-in energy calculator. Business Impact: Visible potential energy savings translates into lower electricity costs and a smaller carbon footprint. Application: Effective for municipal plants and industrial facilities optimizing pump curves and operating hours. Feature: Compact wall-mounted design with IP21 standard enclosure and optional IP55 or flange mounting variants. Business Impact: Simplifies retrofits, reduces floor space requirements, and supports safer, easier installation in tight plant environments. Application: Suitable for retrofits in existing facilities or new-builds with limited footprint. Feature: Intuitive access via Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth control panel. Business Impact: Accelerates commissioning, simplifies maintenance, and enables remote diagnostics, boosting uptime. Application: Field technicians and automation engineers benefit from faster problem resolution. Feature: Compatibility with ACQ580-01-206A-4+X1666+N7560 configuration (Pn 110 kW, 206 A) ensures consistent operation across pump fleets. Business Impact: Delivers predictable performance, scalable multi-pump support, and a consistent maintenance baseline. Application: Municipal and industrial pumping networks requiring standardized drive architecture.
Get a Quick Quote for a ABB 3ABD00048743-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048743-D?
Enquire Now
FAQs
The drive is designed for wall mounting with an IP21 standard enclosure, and IP55 or flange-mount options are available to suit harsher environments or space-constrained installations. Plan for sufficient clearance at the panel, accessible wiring terminals, and mounting on a stable surface. Connectivity to the motor and control interfaces should follow Drive Composer guidance, and consider optional Bluetooth control for rapid field setup.
The unit is rated for 110 kW (Pn) and 206 A, configured in the ACQ580-01-206A-4+X1666+N7560 variant. It uses a low-voltage AC drive architecture with sensorless flow calculation, multipump control, level control, dry-run protection, soft ramping, and an energy calculator to visualize potential savings.
Yes. The drive includes multipump control and level management features designed for coordinated operation of multiple pumps. Its integration with a single wall-mounted drive reduces cabinet space and simplifies sequencing, while the energy calculator helps optimize total plant consumption across pump fleets.
The drive ships with an IP21 standard enclosure, with IP55 and flange-mount variants available to expand installation options in demanding environments. This protection supports reliable operation in water/wastewater facilities, while maintaining compatibility with standard ABB interfaces and commissioning tools.
Expect lower energy costs from optimized pump speeds via the energy calculator, reduced maintenance due to dry-run protection and impeller-cleaning features, and less downtime from easier commissioning with Hand-Off-Auto and Drive Composer. These factors collectively shorten time-to-value and improve overall plant reliability.
