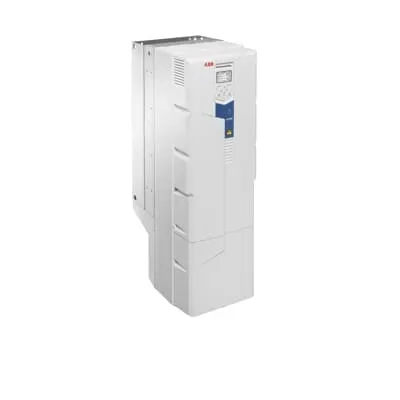

ABB 3ABD00048745-D LV AC Wall-Mounted Drive - IP21 Enclosure
Part Number: 3ABD00048745-D
Quick Summary
ABB LV AC wall-mounted drive for water and wastewater applications optimizes pump flows and energy efficiency. Operators often struggle with energy waste, unreliable starts and stops, and the complexity of configuring multi-pump systems. CE-certified with an IP21 enclosure and optional IP55 flange mounting, this drive is built for challenging water utility deployments. Its integrated pump features—sensorless flow calculation, multipump control, level control, dry-run protection, soft pipe fill, quick ramps, and an impeller-cleaning solution—reduce maintenance and downtime. With intuitive Hand-Off-Auto control, Drive Composer PC tool support, and optional Bluetooth control, it delivers measurable business value through energy savings, improved operational reliability, and easier lifecycle management for water and wastewater projects.
Product Information
Extended Description
3ABD00048745-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Built-in pump application functionality includes sensorless flow calculation, multipump control, and level control. Business Impact: Optimizes pump efficiency, reduces instrumentation costs, and simplifies control logic, delivering energy savings and reliable operations. Application: Ideal for municipal and industrial water/wastewater pumping stations with variable flow demands. Feature: Dry-run protection, soft pipe fill, and quick ramps to minimize mechanical wear and surge. Business Impact: Extends pump life, lowers maintenance costs, and reduces unplanned downtime during start-up and ramping, especially in lift stations and treatment facilities. Application: Critical for large-scale wastewater systems and water distribution networks. Feature: Impeller-cleaning solution and integrated energy calculator. Business Impact: Maintains pump performance and provides real-time visibility into energy savings, supporting continuous improvement programs. Application: Utilities and industrial water customers seeking reliable long-term asset performance. Feature: Usability enhancements including Hand-Off-Auto panel, Drive Composer PC tool, and optional Bluetooth control panel. Business Impact: Speeds commissioning, enables remote diagnostics, and simplifies operation for field technicians. Application: Routine maintenance, remote sites, and multi-site deployments. Feature: IP21 standard enclosure with IP55 and flange mounting options. Business Impact: Flexible installation in restricted spaces, easy upgrade paths, and robust protection in varying environments. Application: Wall-mounted installations across water utilities and wastewater facilities.
Get a Quick Quote for a ABB 3ABD00048745-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00048745-D?
Enquire Now
FAQs
The ACQ580-01 is designed for wall-mounted installation with a standard IP21 enclosure and optional IP55 flange mounting, enabling straightforward integration into existing pumping configurations. Its sensorless flow calculation and multipump control simplify control logic across multi-pump systems, reducing wiring and retrofit complexity while maintaining reliable operation.
Key specs include a power rating of PN 160 kW and a current of 293 A, with built-in energy-saving features and pump-specific functionalities. It supports sensorless flow calculation, level control, dry-run protection, soft pipe fill, quick ramps, and an impeller-cleaning solution, all accessible via an intuitive control interface.
Yes. The drive is purpose-built for water and wastewater pumping, offering multi-pump control, level management, and protective features that are essential for lift stations and treatment plants. The IP21 enclosure (with IP55 option) and wall-mount format support compact, robust installations in these environments.
The ACQ580-01 is CE-certified and ships with an IP21 enclosure as standard, with optional IP55 flange mounting units available for harsher environments. These protections, combined with the pump-optimized features, help meet regulatory and reliability requirements in water utilities.
The drive delivers measurable ROI through energy savings from the built-in energy calculator and efficient pump control, reduced downtime from dry-run protection, and lower maintenance costs due to extended impeller life and simplified commissioning via Drive Composer and optional Bluetooth diagnostics.
